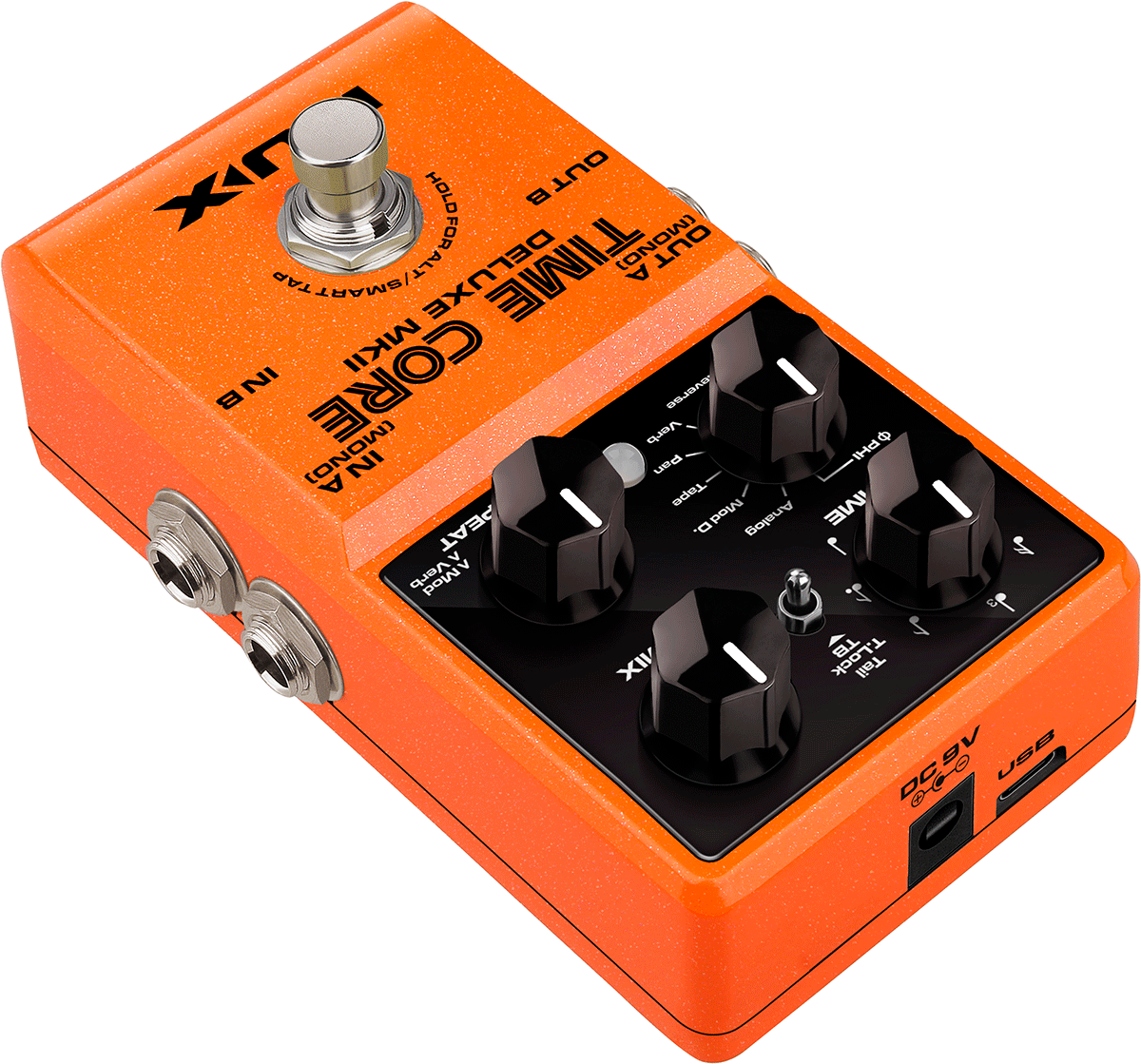

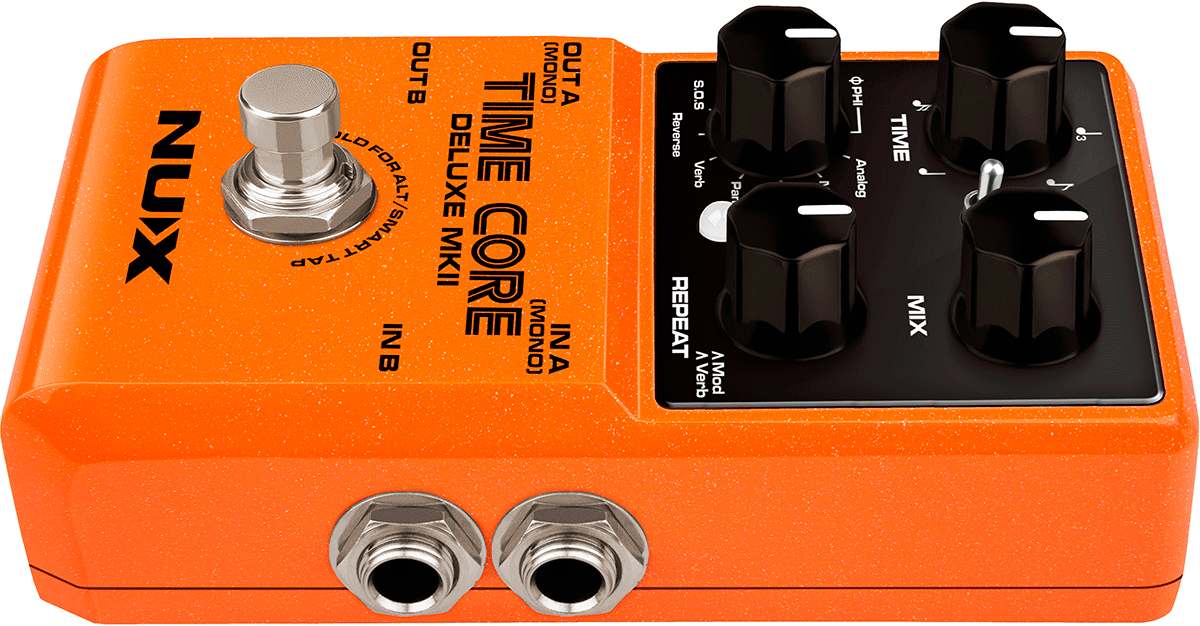

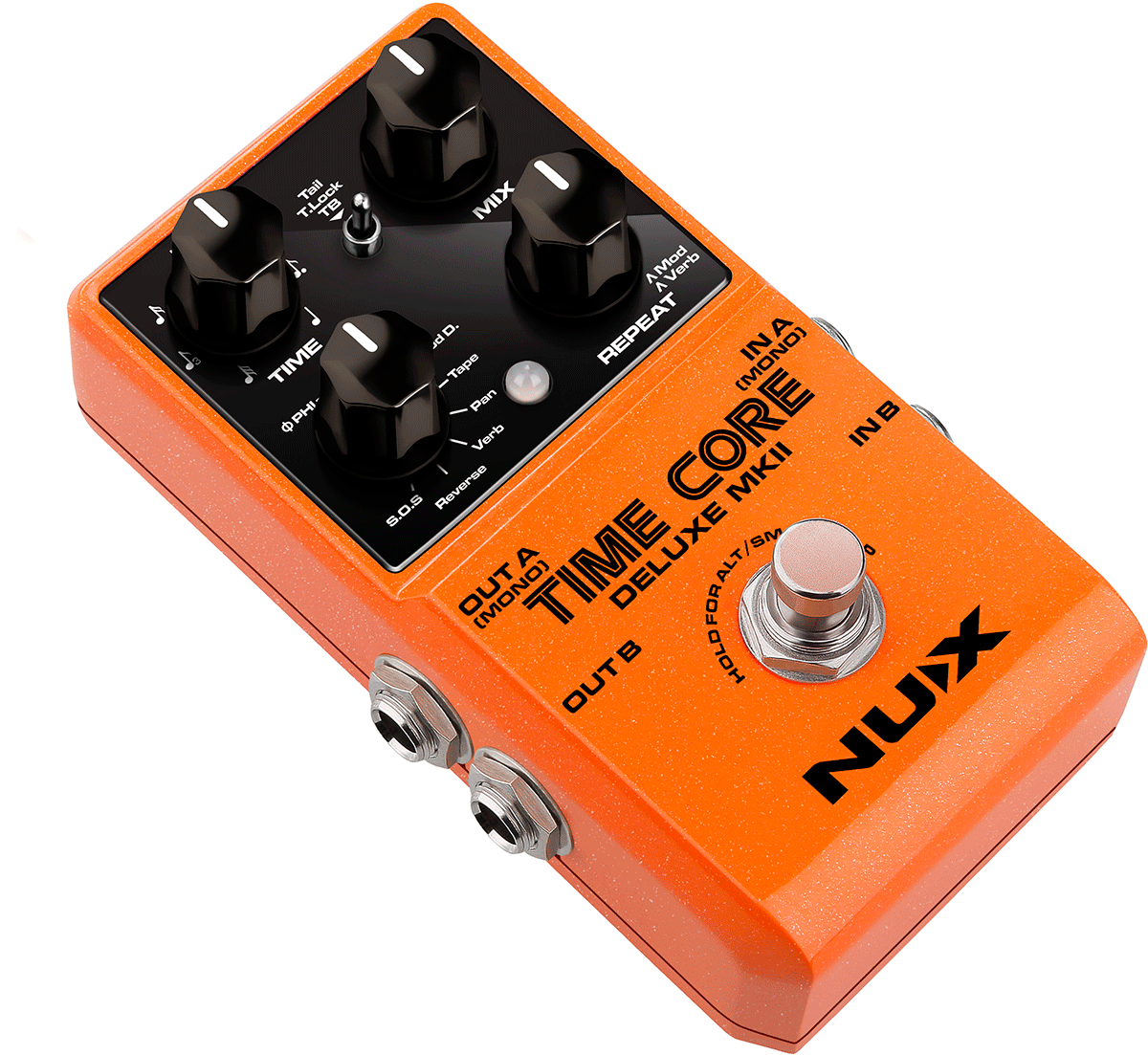

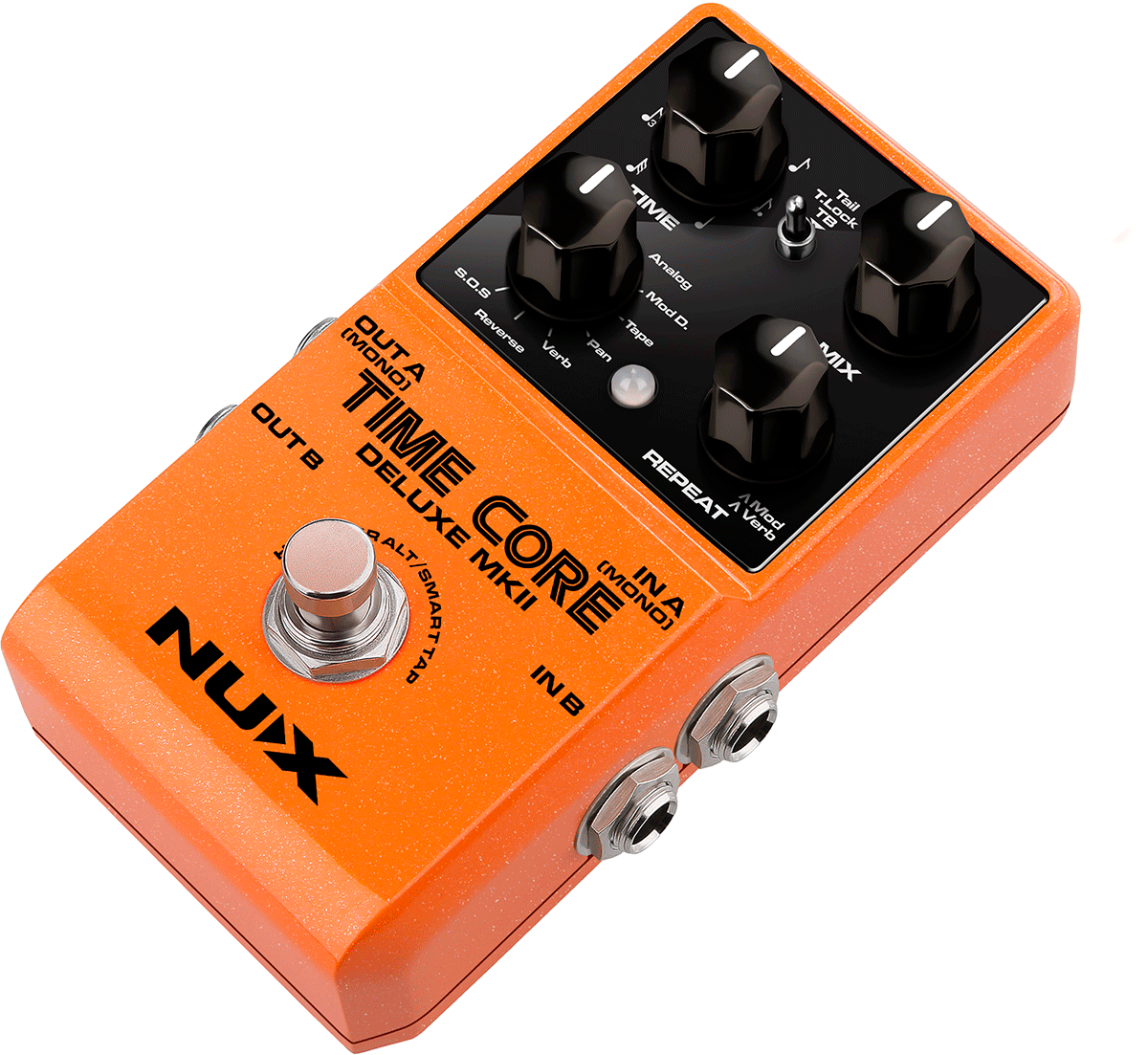

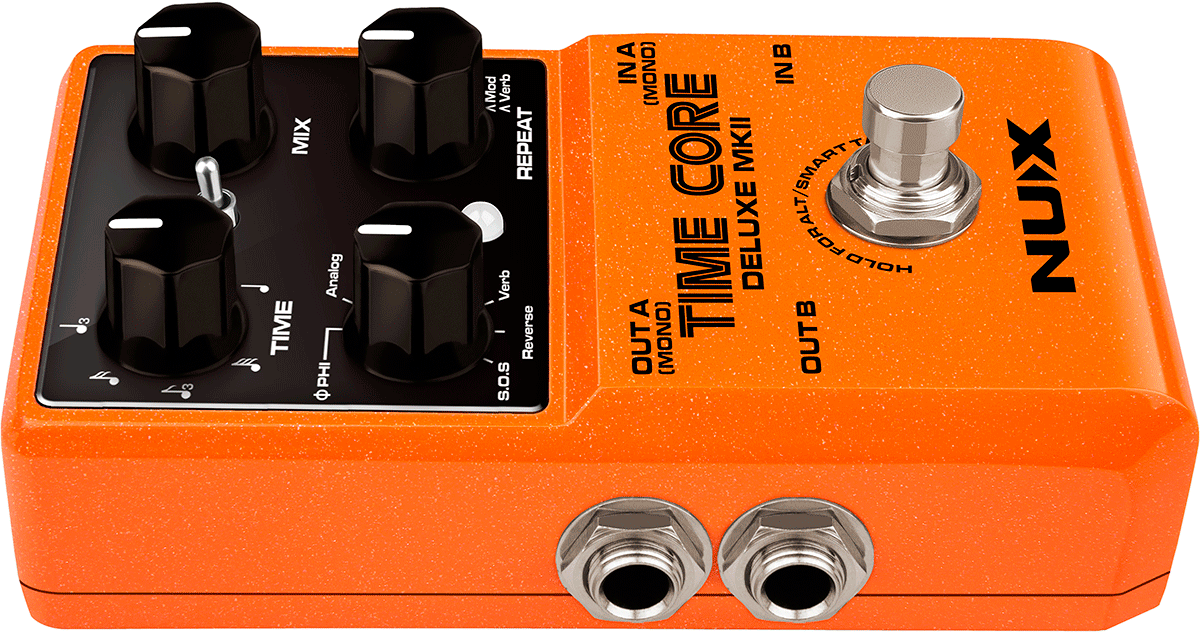

TIMECORE DLX MK2

Description

Specification

The NUX TIME CORE DELUXE MKII is a delay pedal with 7 different types and a phrase looper; including »Phi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, Reverse Delay and Sound On Sound. You can switch the delay type by using the Type rotary switch.

Input Impedance: 1MQ

Output Impedance: 1kg

Dynamic Range: 104 dB

DSP Processing: 48KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power: 9V DC(Negative tip, Optional ACD-006A adapter)

Current Draw: less than 120mA

Dimensions: 122(L) X 72(W) X47(H)mm

Weight: 270g
