PULSE IR LOADER

Description

Specification

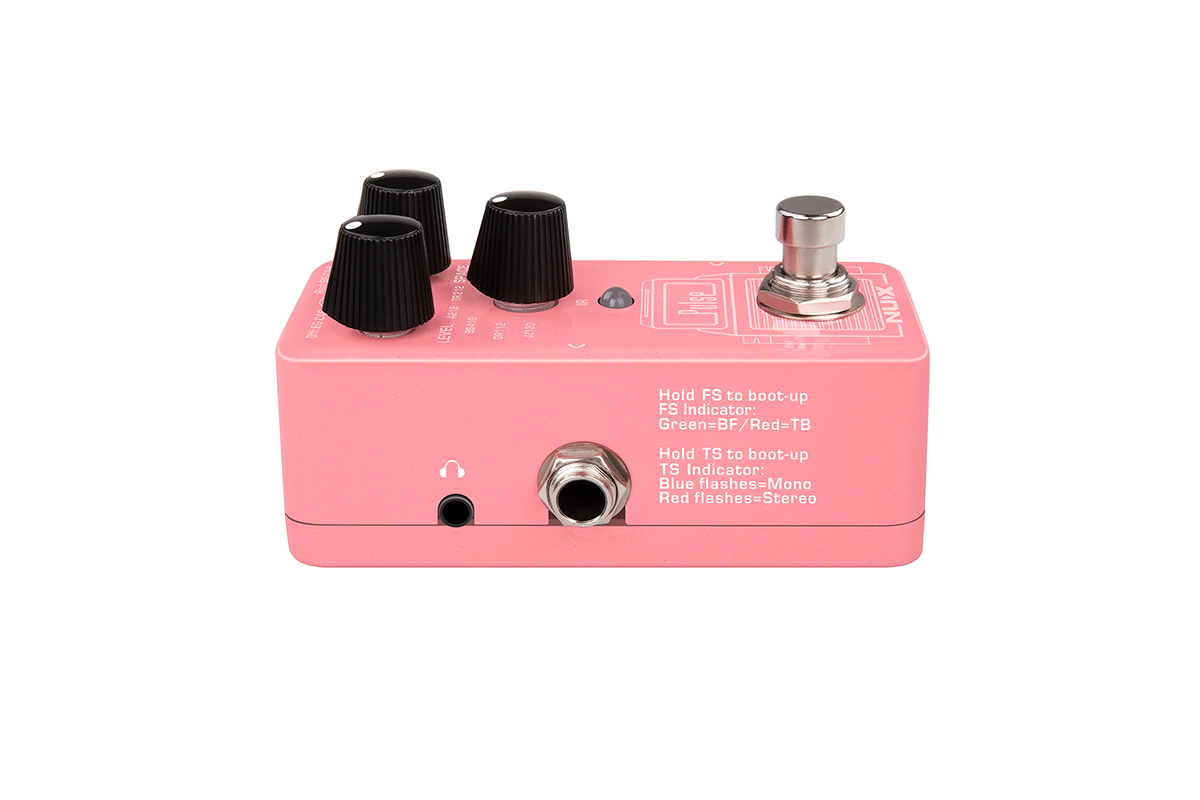

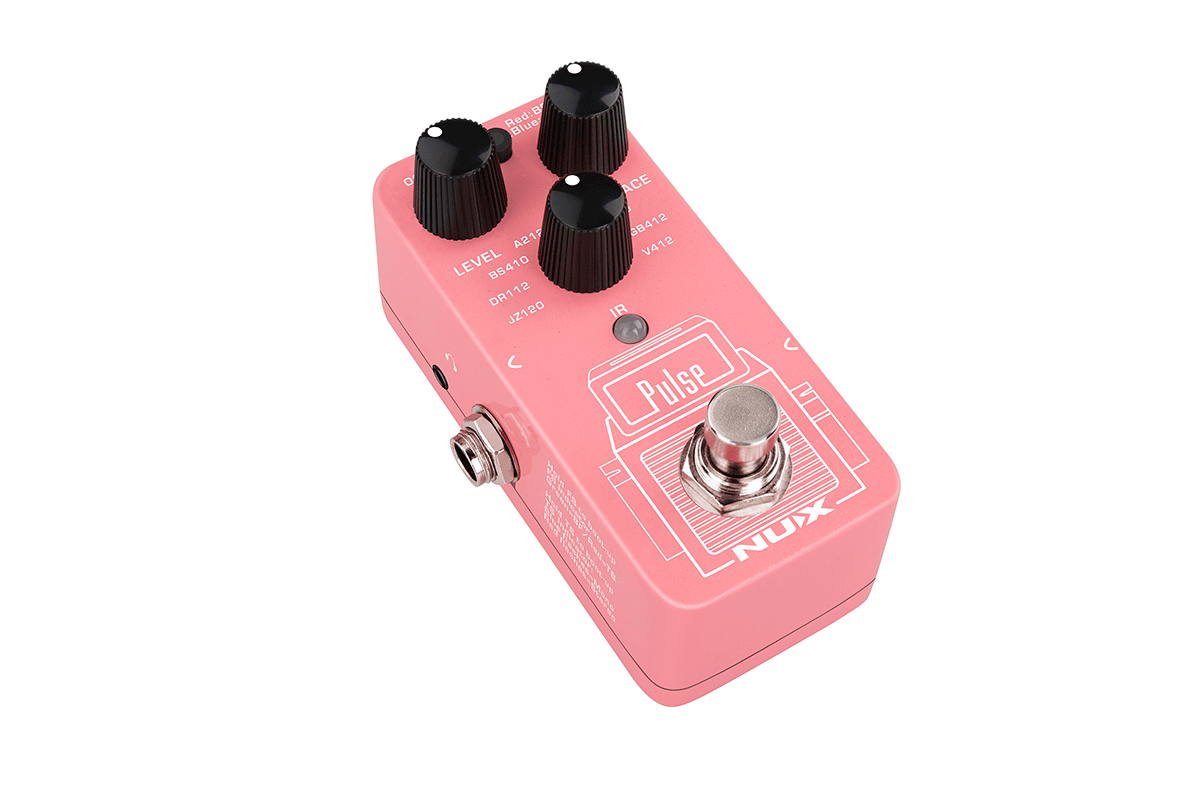

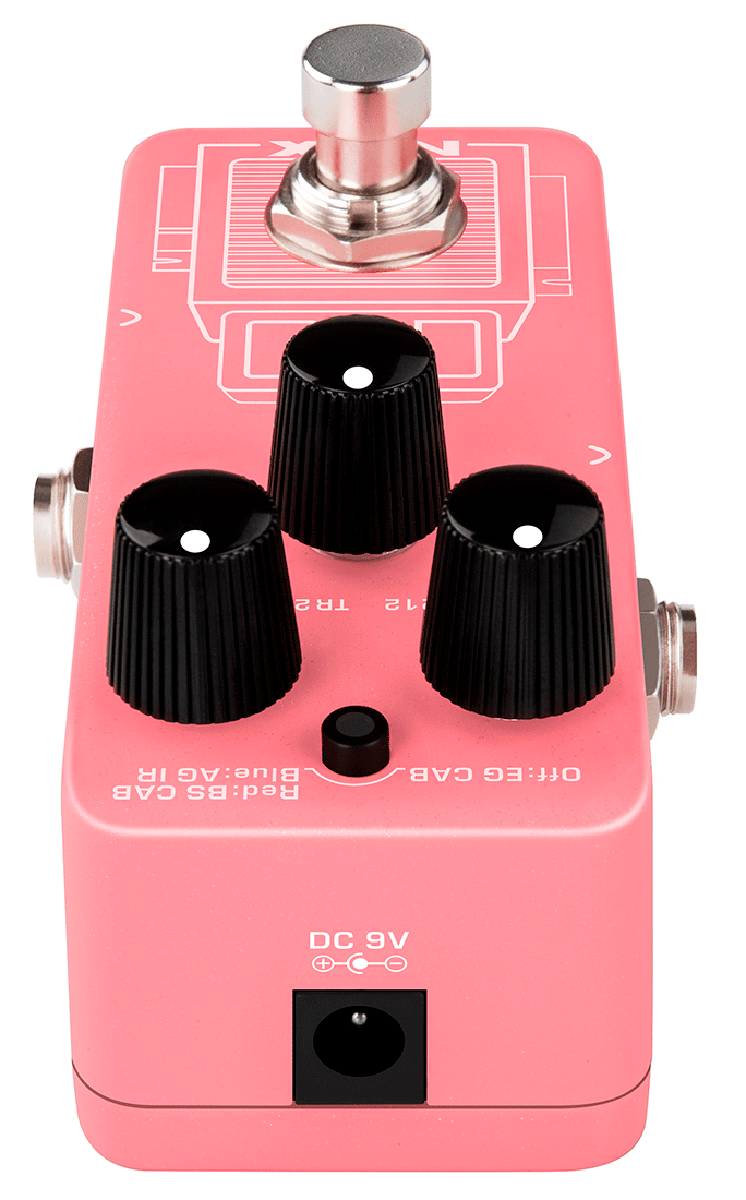

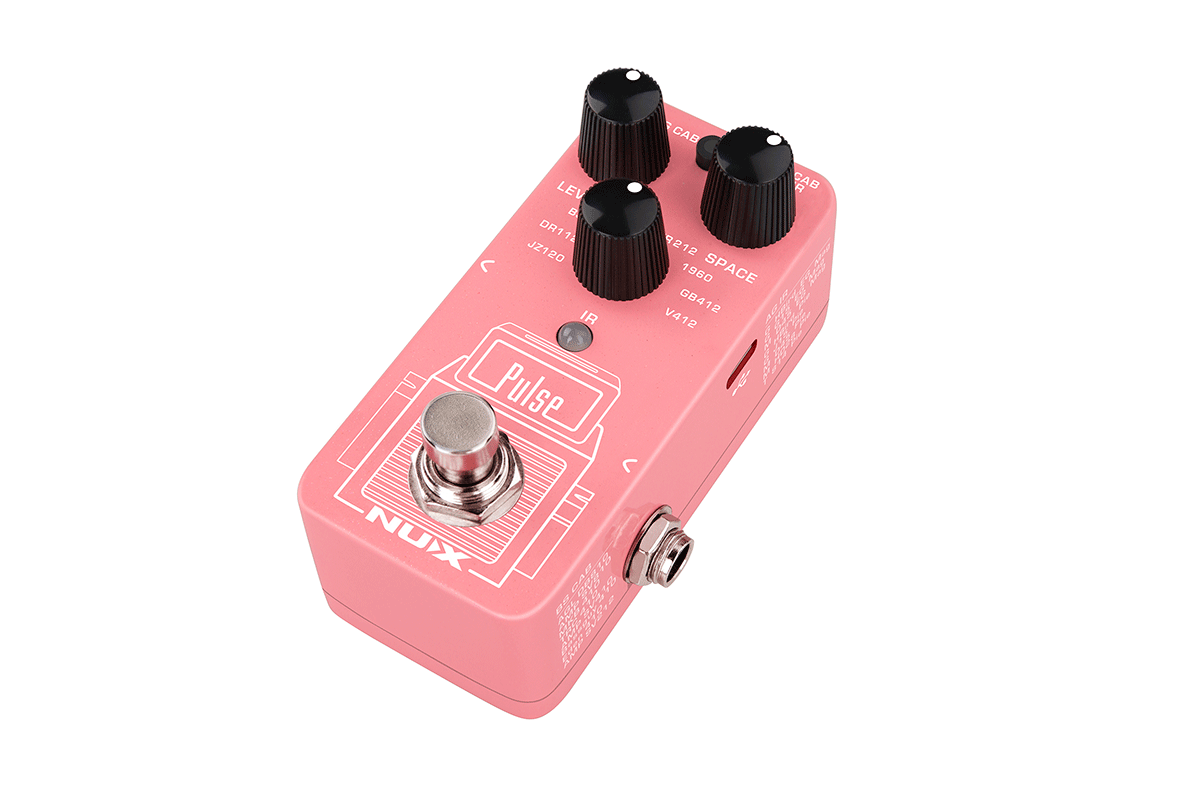

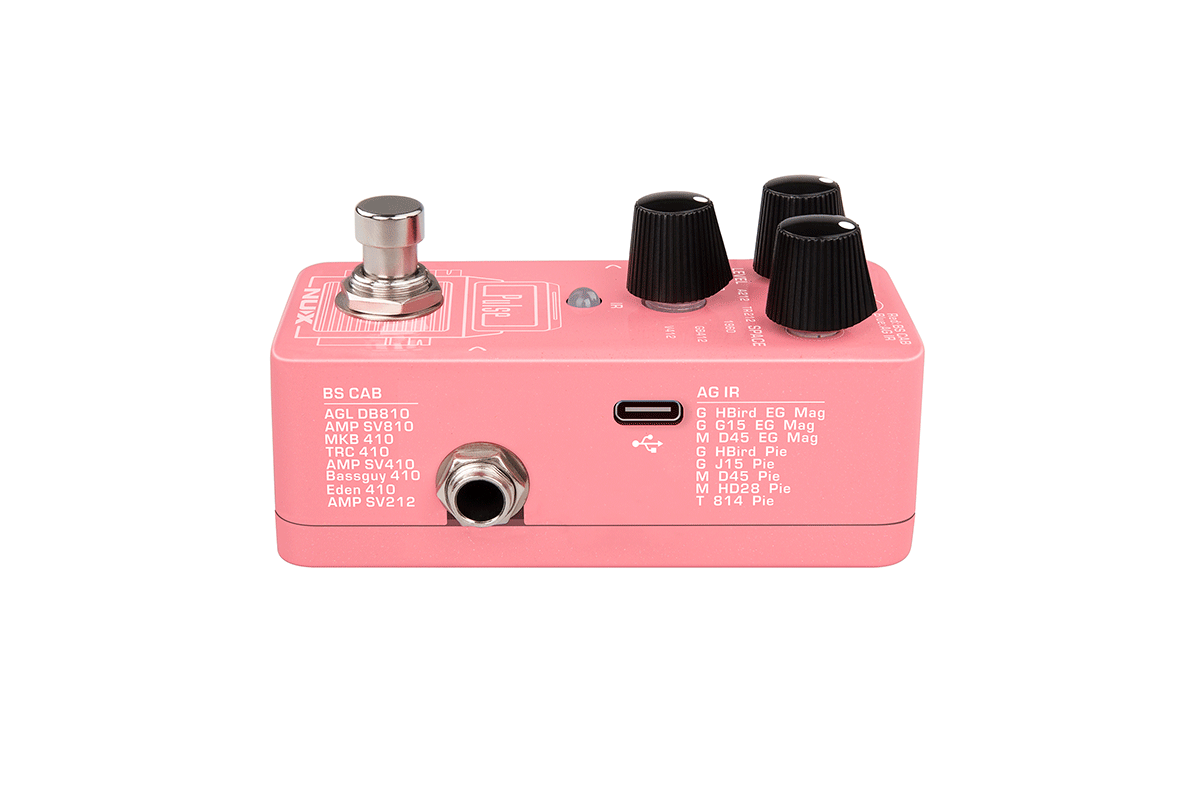

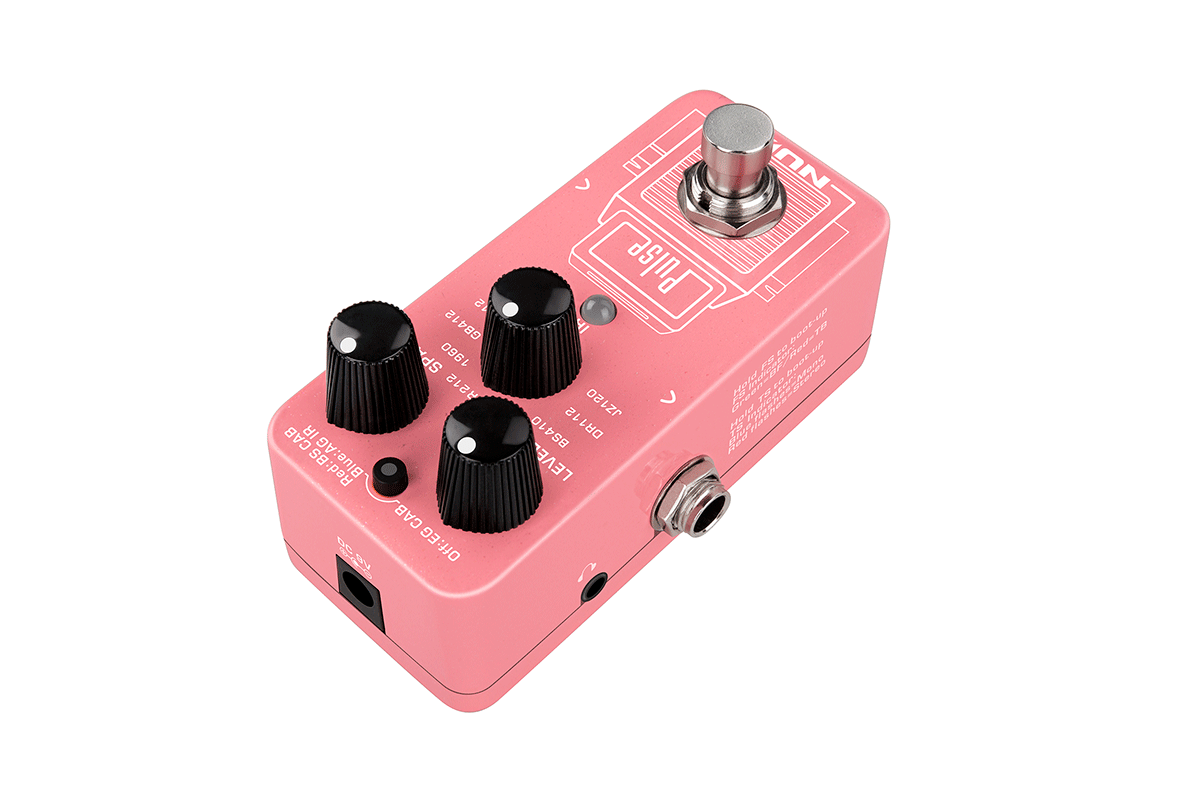

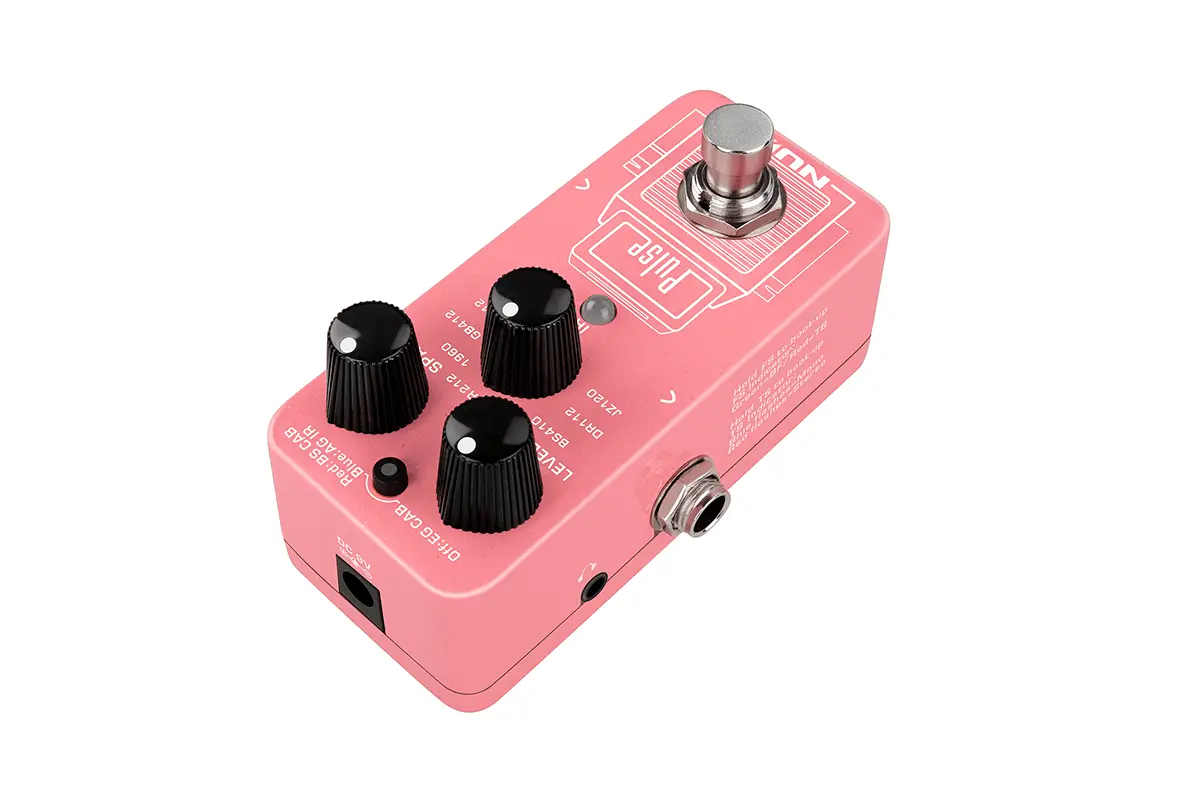

Pulse (NSS-4) 3 is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8" phone jack) in the end of your pedalboard and even as a USB recording interface onto DAV

Input Impedance: 1M

Output Impedance: 10k

Dynamic Range: 103 dB

DSP Processing: 48KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power: 9V DC(Negative tip, Optional ACD-006A adapter)

Current Draw: less than 100mA

Dimensions: 94(L)X51(W)X53(H)mm

Weight: 175g
