IL80 TW

IL 80-TW

Artno: 86904

209 € (Ex VAT)

Description

Specification

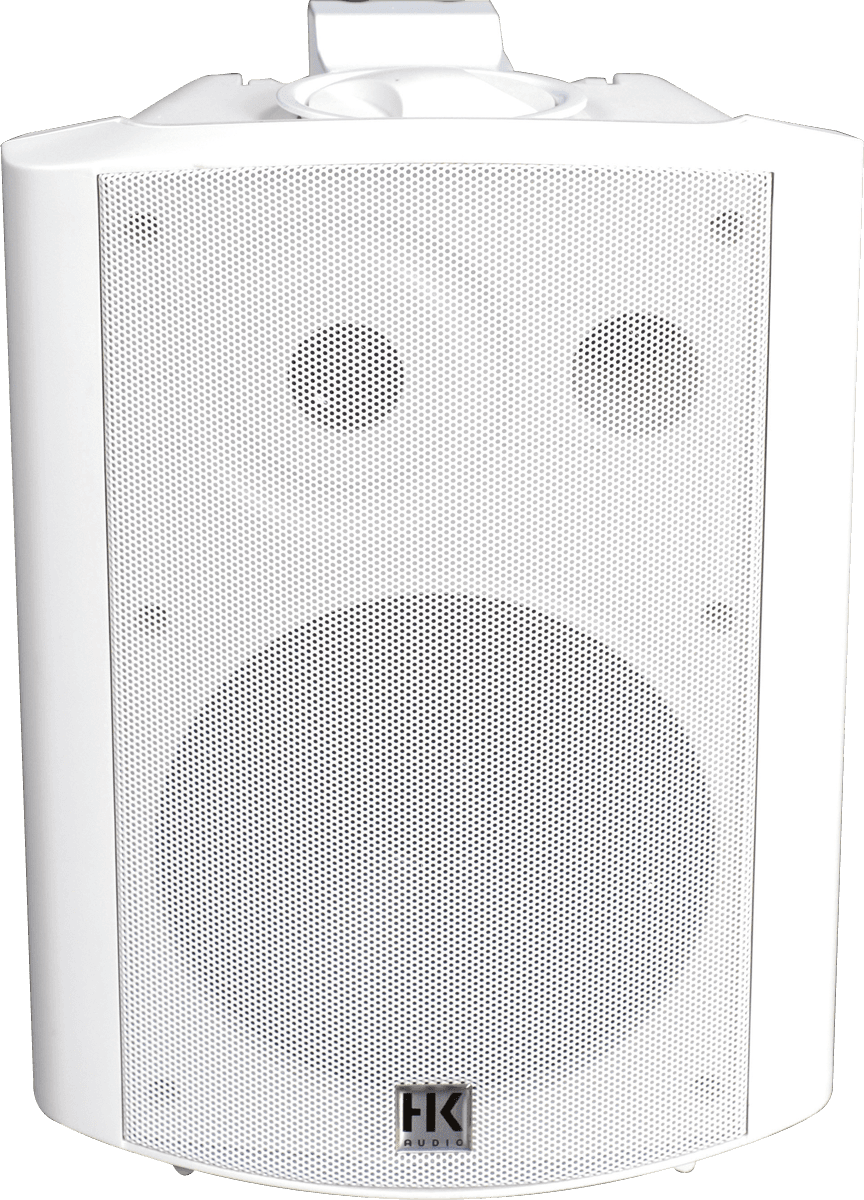

This two-way fullrange speaker delivers excellent audio quality that belies its compact dimensions. It is ideal for covering short to middle distances such as in foyers or bars. The IL 80 TB/TW”s polymer housing is trapezoidal to prevent the formation of standing waves as well as to facilitate corner mounting and inconspicuous installation in many different kinds of rooms. This enclosure provides satisfying fullrange sound even without a subwoofer. It features an 8″ woofer and a 1” tweeter with neodymium magnets. The two are configured in twin axial array and addressed via an internal passive crossover. The switchable 100V transformer provides five power taps, selectable via rotary switch. Its nominal power handling capacity is 60 watts RMS. This enclosure is available in white (TW) and in black (TB); a bracket for wall and ceiling mounting is included.

• Wall loudspeaker operating at low impedance or 100V line.

• Packaging: delivered by 2 (unit price).

• Power: 60W at 8 ohms / 2, 5, 10, 20, 40W in line 100V

• Power selector on the back

• Frequency response +/• 3 dB : 60 Hz • 20 kHz

• Sensitivity 1W/1M (Half-space) : 89 dB, SPL max. 109 dB (10% THD)

• Components : HP 20 cm polypropylene cone / 1"" tweeter

• Dispersion : 90 degrees conical

• Structure : polymer molding

• Connectors : terminal blocks / banana plugs

• Wall mounting : lyre supplied

• Dimensions : W27 x H37 x D22 cm / Weight: 5.4 kg / Colour white
