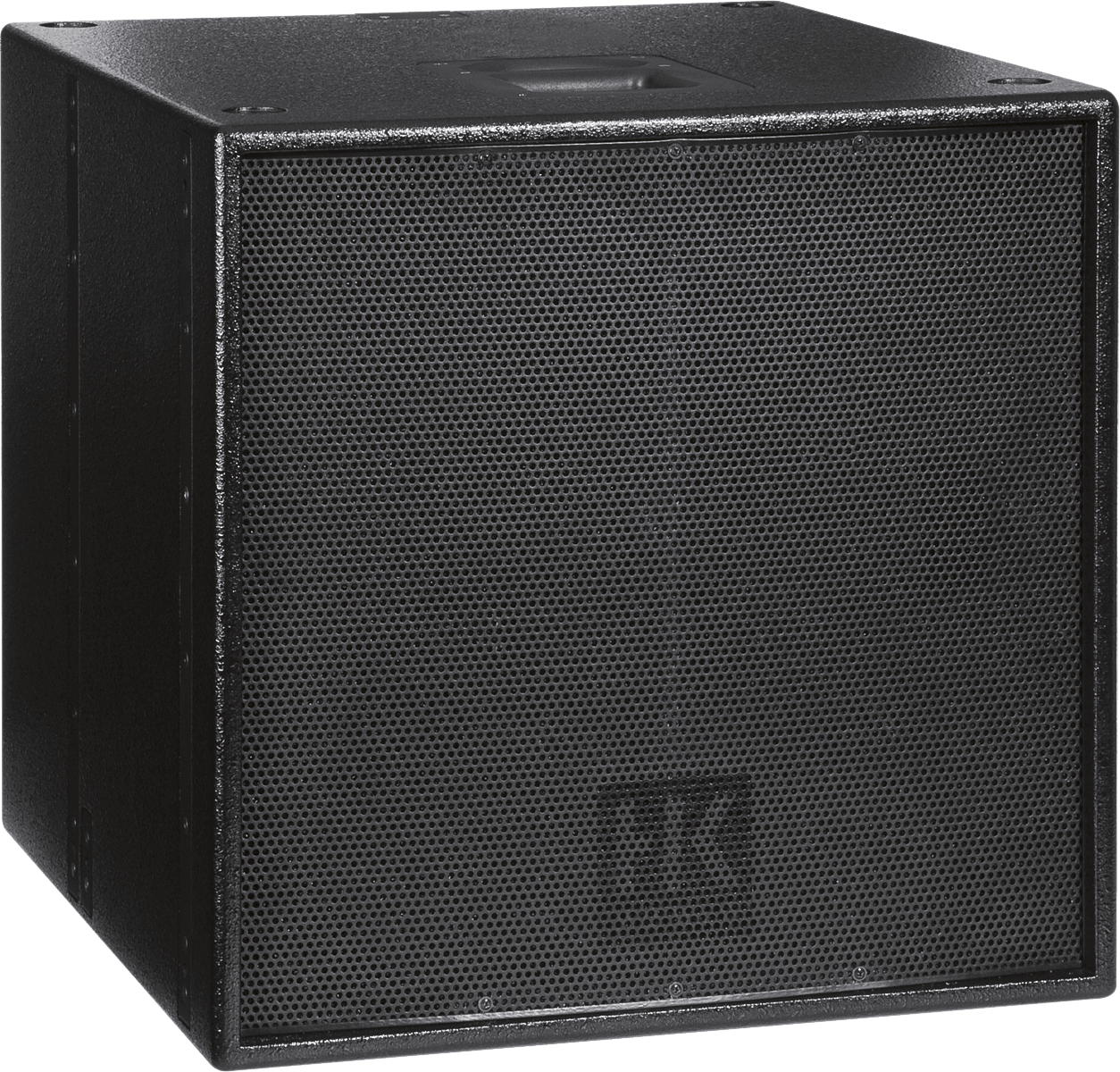

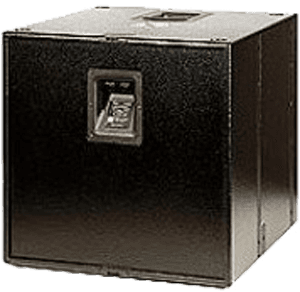

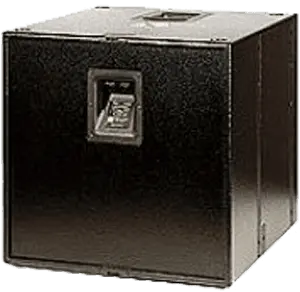

Loaded with a 15“ neodymium speaker in a precisiontuned bass reflex housing, this professional-grade subwoofer delivers powerful, direct and remarkably dynamic response. The cubeshaped enclosure is made of 18-mm birch multiply coated with black or white lacquer. Other RAL colors are optionally available. A rugged steel grille backed with laminated acoustic foam rubber protects the front. Embedded rails attach the enclosure to a rigging frame and accept a connector frame for use with CAD 208 mid-/ high-range units.
• Components: HP 38 cm Neodymium
• Frequency response +/• 3dB : 47 Hz • 150 Hz
• Frequency response • 10dB : 42 Hz • 150 Hz
• Sensitivity 1W/1m : 96dB (Full-space) / 102dB (Half-space)
• SPL max @10% THD (60 Hz • 150 Hz) : 122 dB (Full-space) / 128 dB (Half-space)
• Rated power : 600W RMS / 8 Ohms
• Filtering: via external digital controller
• Integrated hanging system : 4 rails
• Optional: trolley with 4 100mm castors
• Formwork : birch plywood 18mm
• Connectors : 2x Speakon NL4
• Dimensions: W58.3 x H57.3 x D64 cm / Weight: 38 Kg
• Colours: black or white (also available in all RAL colours on request)"
