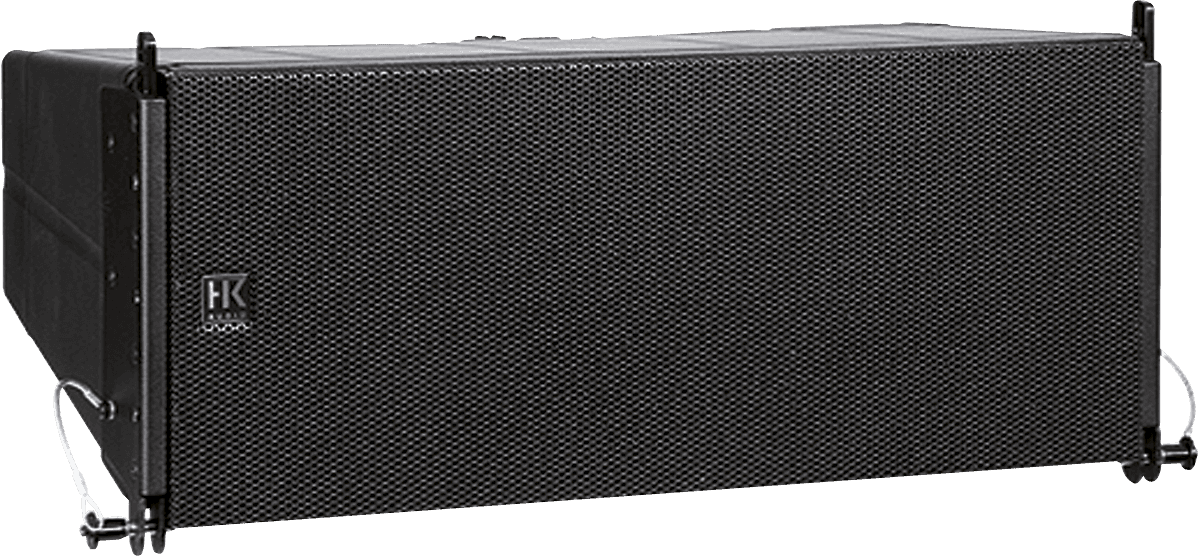

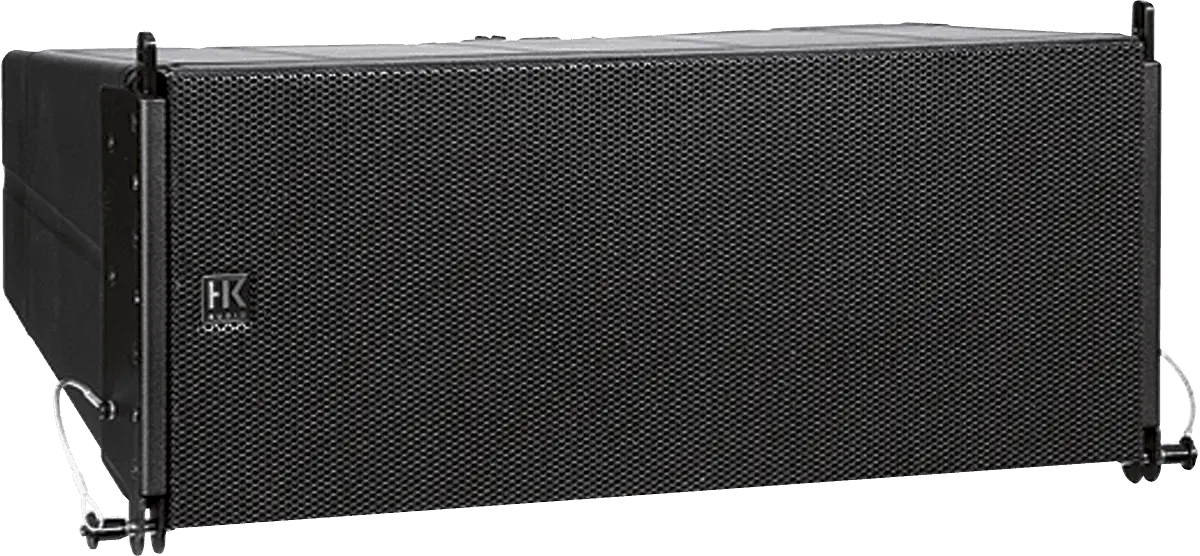

This professional 2 1/2-way speaker system serves to set up vertical arrays that project a wide wave-front across the entire audience area. Two 8“ loudspeakers are mounted in a precision-tuned polyamide housing. Two 1“ HF drivers are coupled to two CD horns with 100° horizontal and 15° vertical directivity. The tough polyamide housing is weather- and UVresistant. It comes in black or white, though other RAL colors are available on demand. The fully integrated rigging hardware is adjustable from 0° to 15° in 1.5° steps. The front grille is made of steel.The HK Audio FirNet Controller or HK AUDIO DSM 2060 Controller paired with VX2400 power amps serve to drive these speakers. The Simulation software for CADIS is EASE FOCUS.
• Components: 2x HP 20 cm / 2x motor 1" mounted on double concentric waveguide
• Dispersion : 100° (H), 15° (V)
• Frequency response +/• 3dB : 75 Hz • 18 kHz
• Sensitivity 1W/1m : 95dB (Full-space) / 101dB (Half-space)
• SPL max. (4x CAD208) : 130 dB @10% THD (Full-space) / 136 dB@10% THD (Half-space)
• Rated power : 250W RMS / 8 Ω
• Internal passive filter : 2.5 channels / frequency 1.8 kHz • 12 dB/oct cut-off
• 3 active channels version (3 x 16 Ohms), digital controller type DSM2060 or FIRNET recommended
• Integrated hanging system / Maximum number of CAD208 per array : 24
• Curve angles : 0 to 15 degrees in 1.5 degree steps
• Formwork: glass-fibre reinforced polyamide (resistant to cold and humid environments IP44)
• Connectors : 2x Speakon NL4 (passive version) or 2x Speakon NL8 (active version)
• Optional terminal or PG (waterproof) connectors
• Dimensions : W57.8 x H23.8 x D37.3 cm
• Weight : 17.5 Kg (version with passive filter) / 16.4 Kg (version without passive filter)
• Colours: black or white (also available in all RAL colours on request)
