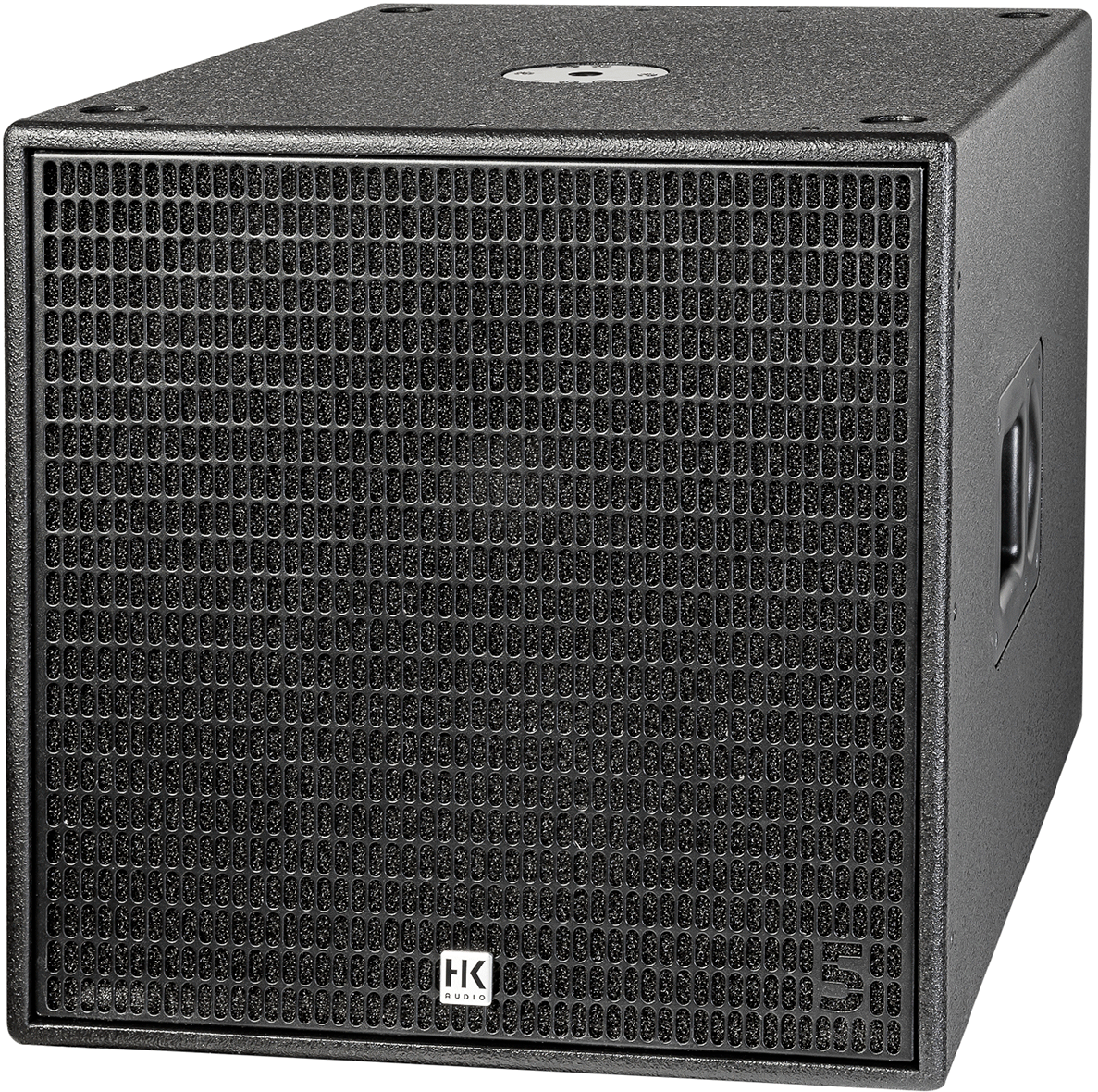

LINEAR 5 MK II Subwoofer
The standard LINEAR 5 MK II 115 Sub A and LINEAR 5 MK II 118 Sub A bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. DSP functions that can be remotely controlled or simply selected via a preset, such as the 1:1 vertical and 1:1 horizontal Cardioid settings, give the user an enormously expanded range of options for system configuration and access to the professional class at any time. The latest generation of stereo Class-D power amplifiers provide ample headroom and simplify 2.1 setups with the stereo preamplifiers.
1000 W RMS / 2000 W peak (LINEAR 5 MK II 118 Sub A) and 600 W RMS / 1200 W peak (LINEAR 5 MK II 115 Sub A) Class-D amp power
Two lockable, balanced XLR/TRS Combo inputs, balanced XLR outputs for analogue loop- through to an additional speaker
Remote-controlled high-performance DSP with integrated Remote and Cardioid presets (Front, 1:1 vertical, 1:1 horizontal, Remote)
DSP-Out: Balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software
Professional, lockable EtherCon connectors for connection to a Mac or PC to control the system via network; daisy chain connections possible
M20 thread for mounting pole
Enclosure made of birch multiplex hybrid (LINEAR 5 MK II 115 Sub A) and birch multiplex (LINEAR 5 MK II 118 Sub A)
- Amplification : Active amplified
- Category : Soundsystem
- Color : Black
- Connection : [Connectique_Combo], [connectique_ethercon], [connectique_xlr]
- Controls : [MON_controle3239], [MON_controle_gain_d_entree], [enceinte_controle_commutateur_mute], [enceinte_controles_commande_du_filtre_passe_bas], [enceinte_controles_commutateur_de_polarite], [enceinte_controles_delai]
- DSP : Yes
- Dimensions (mm) : 550 x 560 x 685
- EQ : 10 channels
- Finishing : Black
- Inputs : 2 x combo XLR/jack, RJ45
- Insert type : [Insert_2xM20]
- Outputs : link XLR, [specstech_sorties_xlrdsp]
- Peak power : 2,000 W
- Peak power, type : RMS
- Power / type : RMS
- Power output : 1,000 W
- SPL Max / peak : 131 dB
- SPL max : 129 dB
- Speaker diameter : 18"
- Speaker structure : [MON_struct_enceinte2947]
- Transport : [enceinte_transport_2_poignees]
- Type : [enceinte_type_caisson_de_basse_actif]
- Weight (kg) : 41.60 kg
