ISA-TWO

Description

Specification

Two Channels Of Classic Focusrite Mic Pres.

Focusrite's ISA Two brings together a totally independent pair of classic ISA microphone preamps from the original ISA 110 module, combining the best of traditional solid-state electronics with the original input transformer specified by Rupert Neve – the Lundahl LL1538.

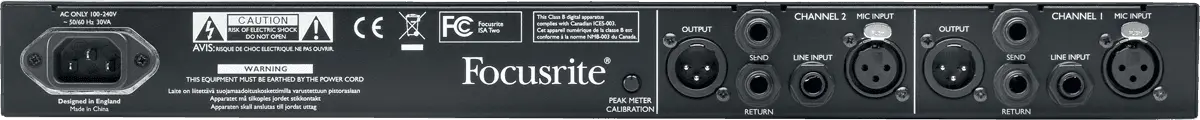

Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the first four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. A pair of 8-segment LED meters show peak signal level in dBFS, while a rear-panel pot allows calibration to suit your A-D converters. Rear-panel insert points allow the use of inline processors such as compression.

- Audio outputs : XLR

- Category : [PREM_categorie1901]

- Compressor : No

- Dimensions (mm) : 480 x 280 x 44

- EQ : [hpf]

- Gain : 80 dB

- Impedance selector : Yes

- Insert : Yes

- Number of channels : 2

- Number of instrument inputs : 2

- Number of microphone inputs : 2

- Phantom power supply : Yes

- Phase opposition : Yes

- Rack unit : 1

- Remote : No

- Vumeter : [inl]

- Weight (kg) : 3.70 kg
