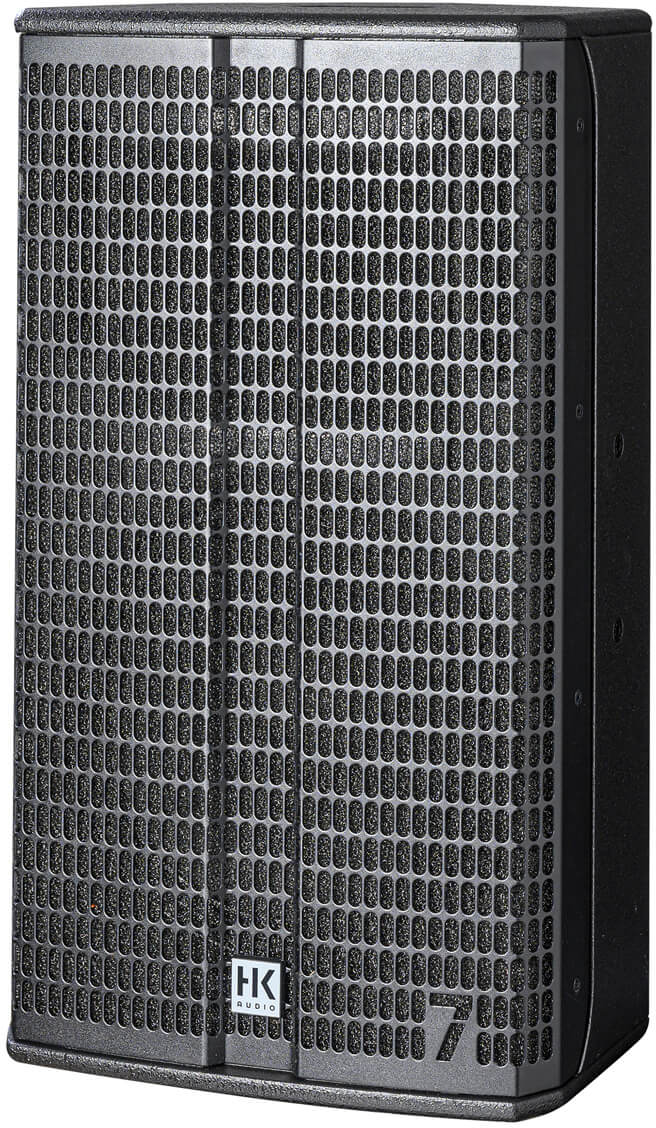

The L7 effectively maximizes sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers and delivers ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity. Includes a state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration that offers the latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.
Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP that´s easy to control with the direct access to easy selectable presets for use as full range cabinet or in a system, even in a non-network setup. The futureproof Audio-Streaming (Certification for MILAN is in the works) operates in high resolution 96 kHz AD/DA converters, FIR-filtering and low latency.
L7 provides a full range housing for maximum bass output and a user friendly rigging and mounting option.
- Amplification : Active amplified
- Application : [MON_monitoring_application001], [MON_monitoring_application002]
- Baseplate width : 35 mm
- Bluetooth : No
- Category : Soundsystem
- Cut-off frequency : 1,6 kHz
- Cutaway : Yes
- DSP : Yes
- Dimensions (mm) : 37 x 67 x 31
- Finishing : Lacquered black
- Frequency response : 67 Hz - 19 kHz
- Horizontal dispersion in degrees : 70

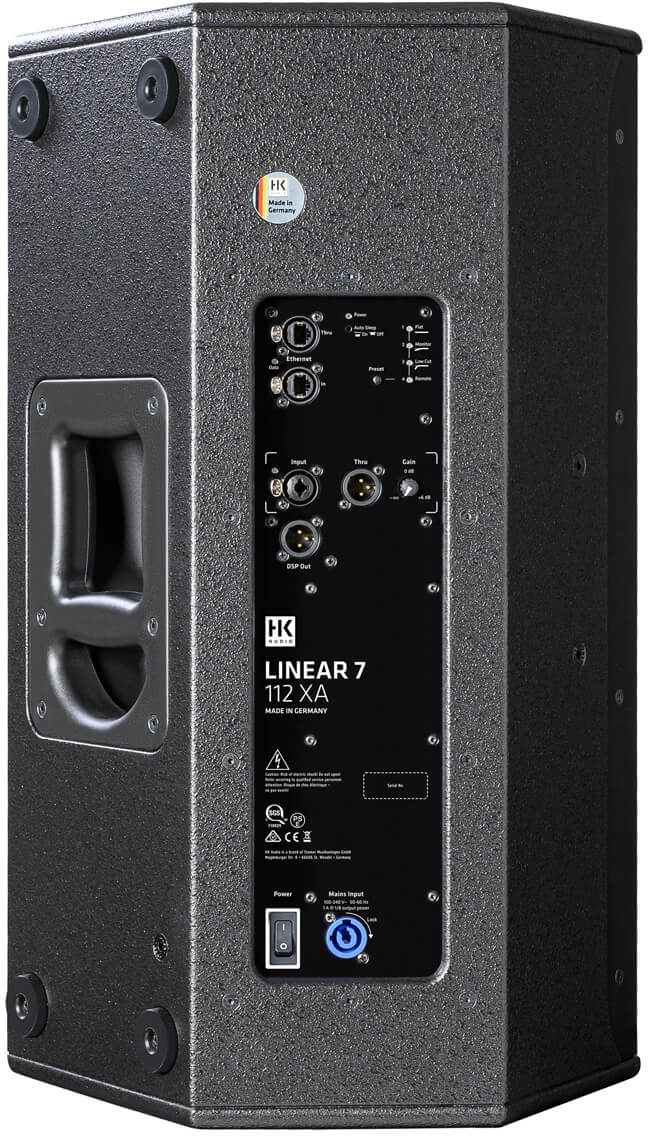

- Inputs : XLR, [enc_ent_pow], RJ45
- Insert type : [MON_monitoring_insert003]
- Mounting : [Montage_sur_pied_35mm]
- Number of channels : [MON_monitoring_nbrevoies003]
- Outputs : link XLR, RJ45
- Peak power : 2,000 W
- Power output : 2,000 W
- SPL Max / peak : 131 dB
- SPL max : 128 dB
- Speaker diameter : 12"
- Speaker protection type : Power limiter
- Speaker structure : [MON_struct_enceinte2947]
- Transport : [enceinte_transport_2_poignees]
- Tweeter : 1"
- Type : [enceinte_type_enceinte_active]
- Vertical dispersion in degrees : 50
- Weight (kg) : 21 kg
