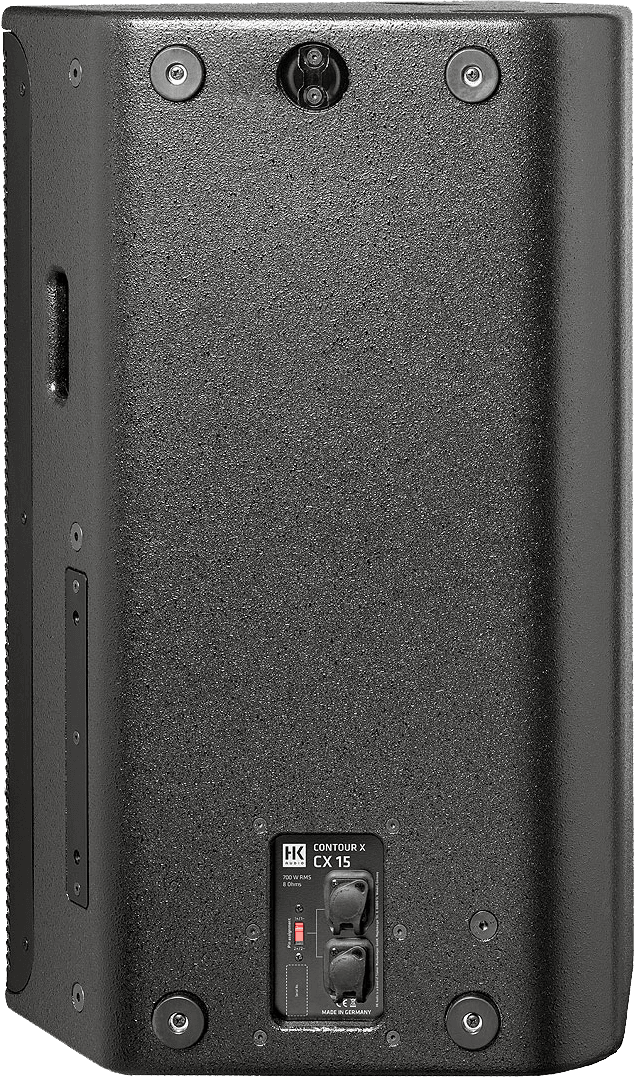

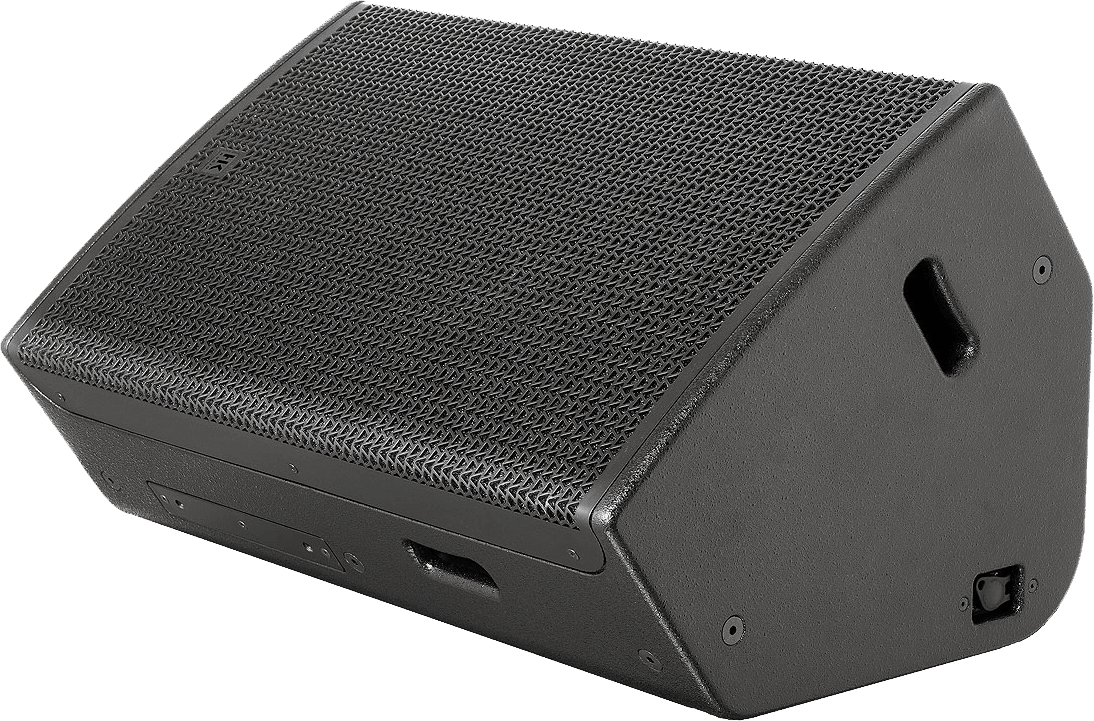

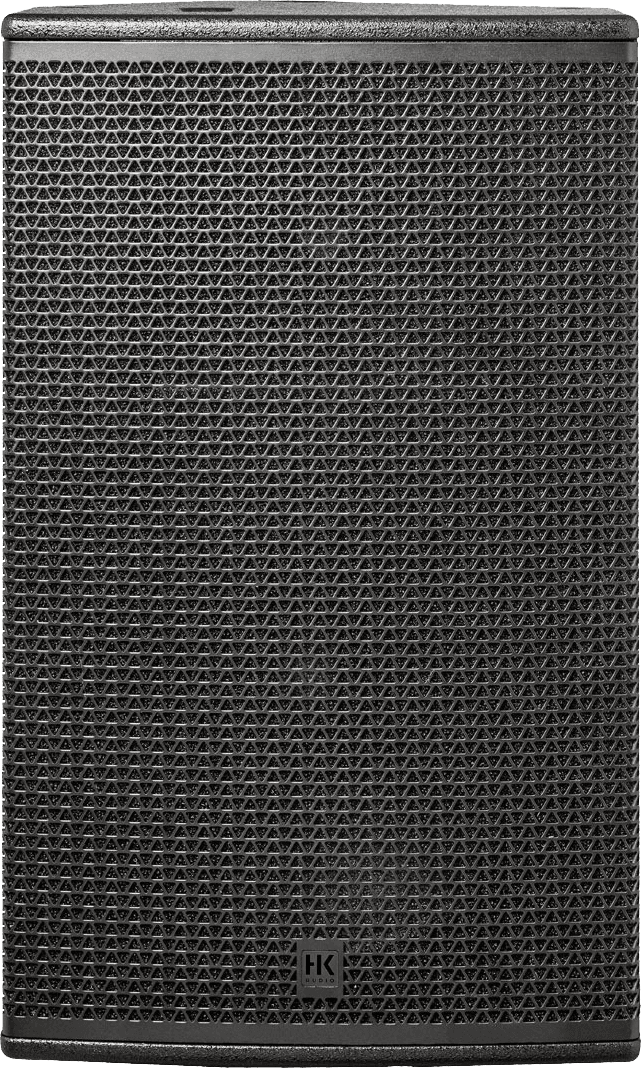

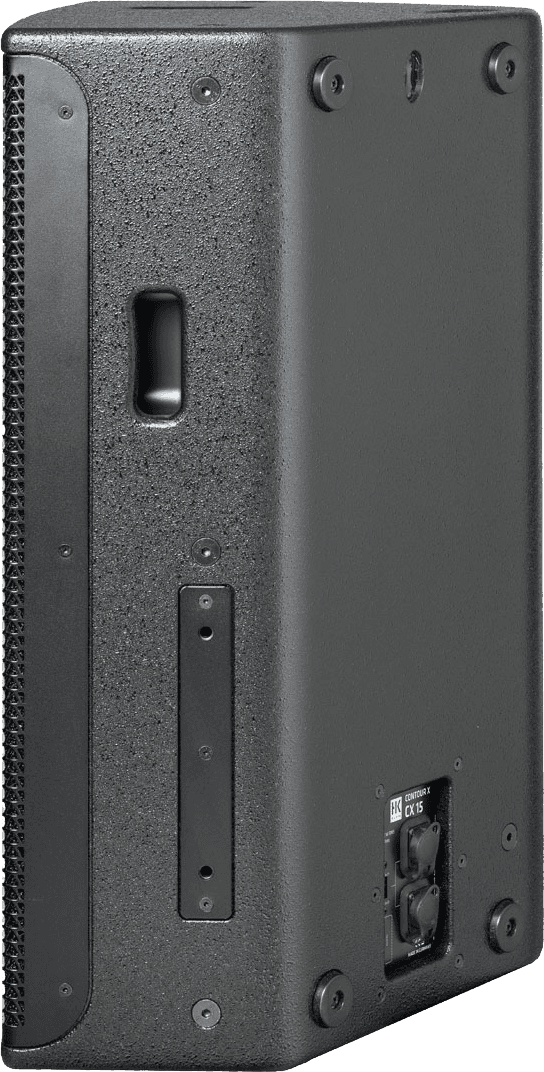

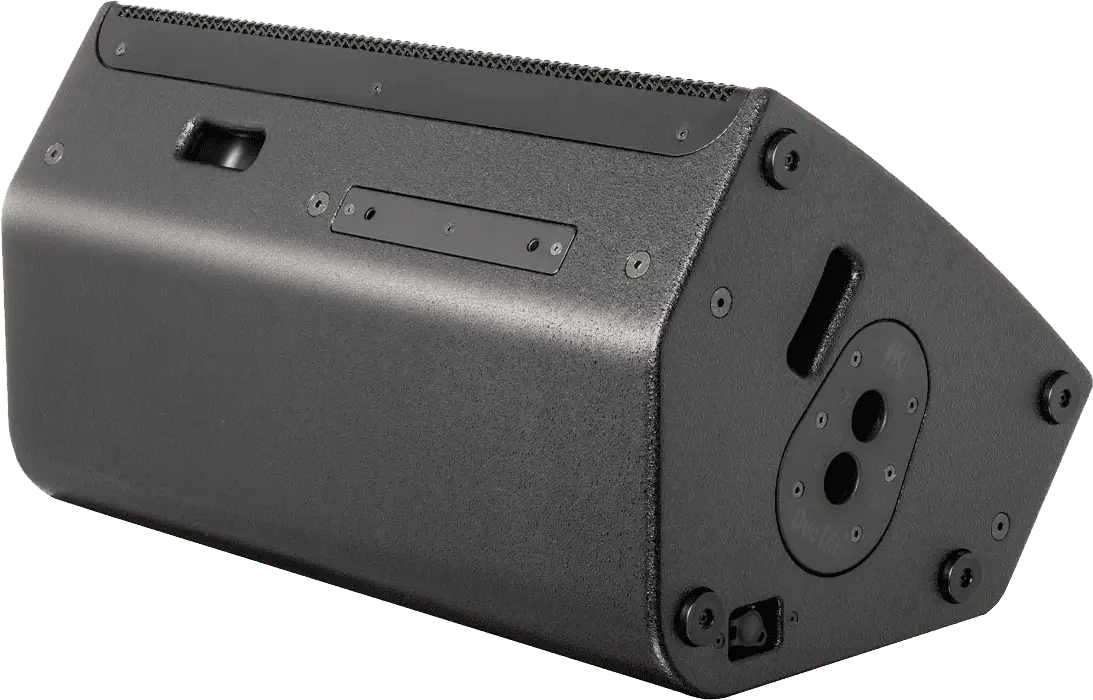

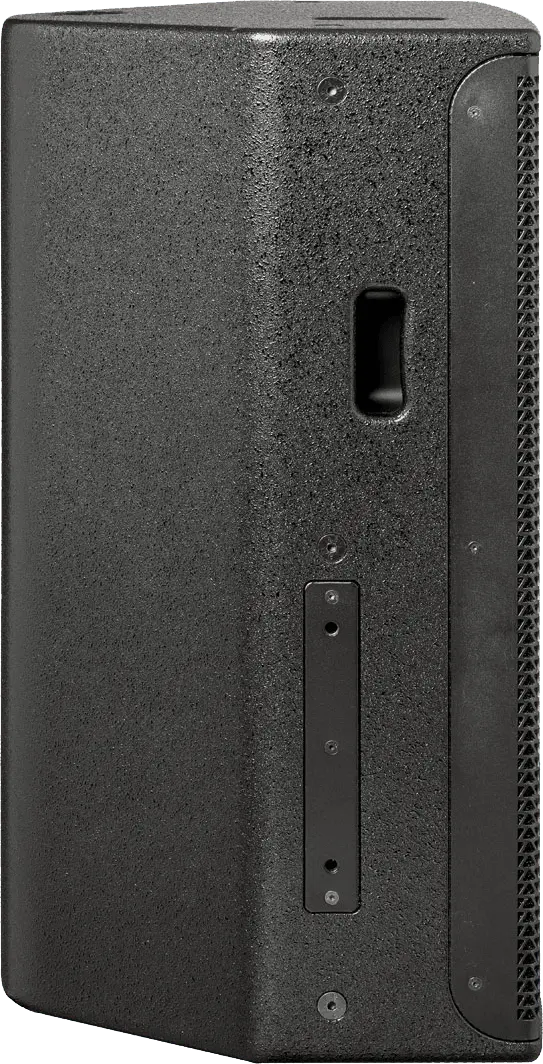

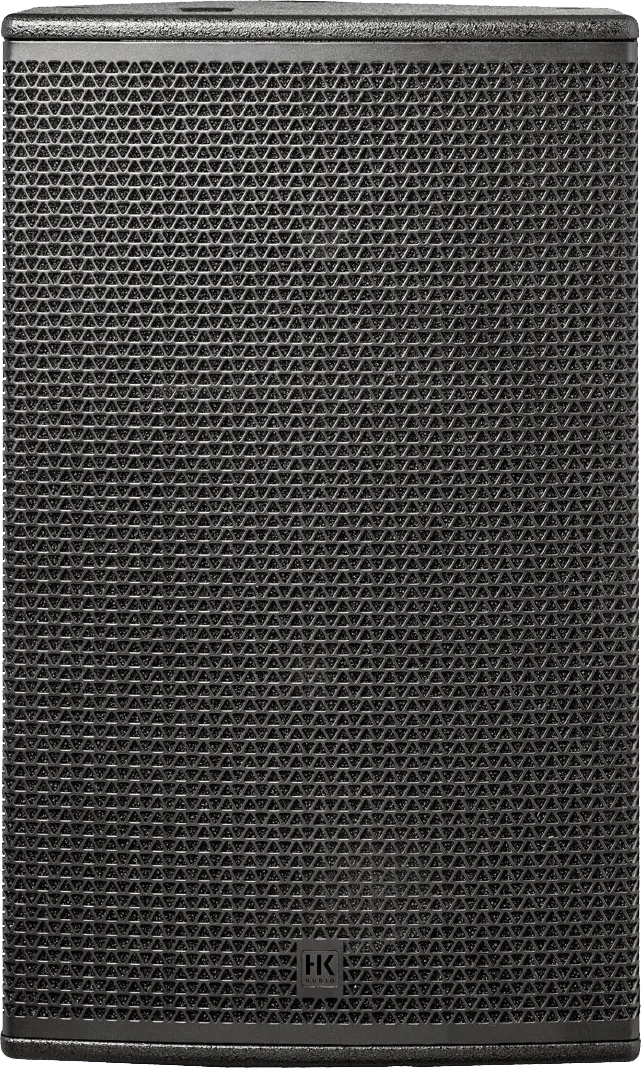

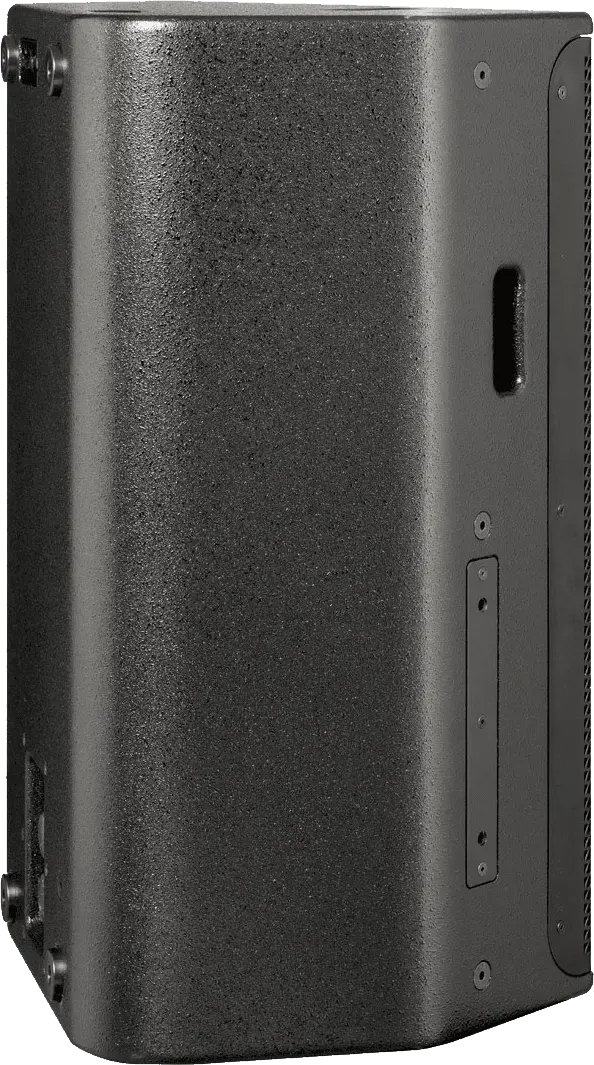

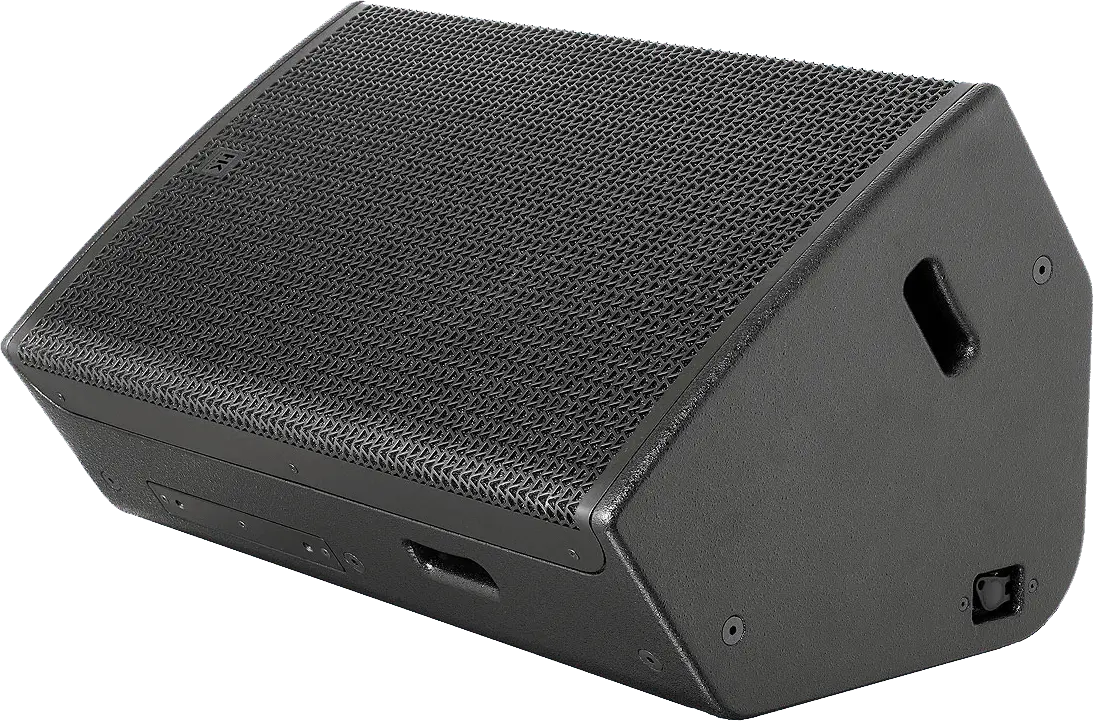

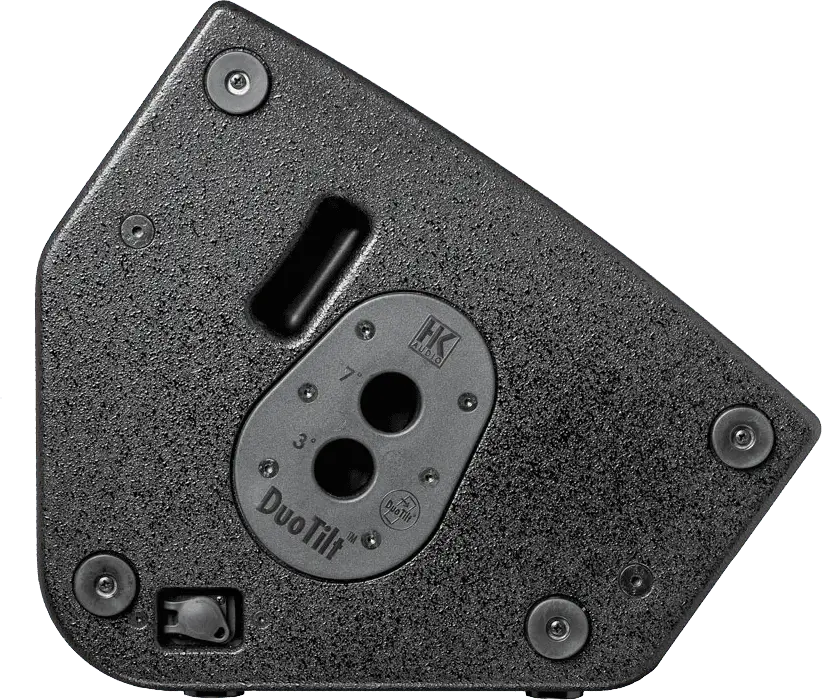

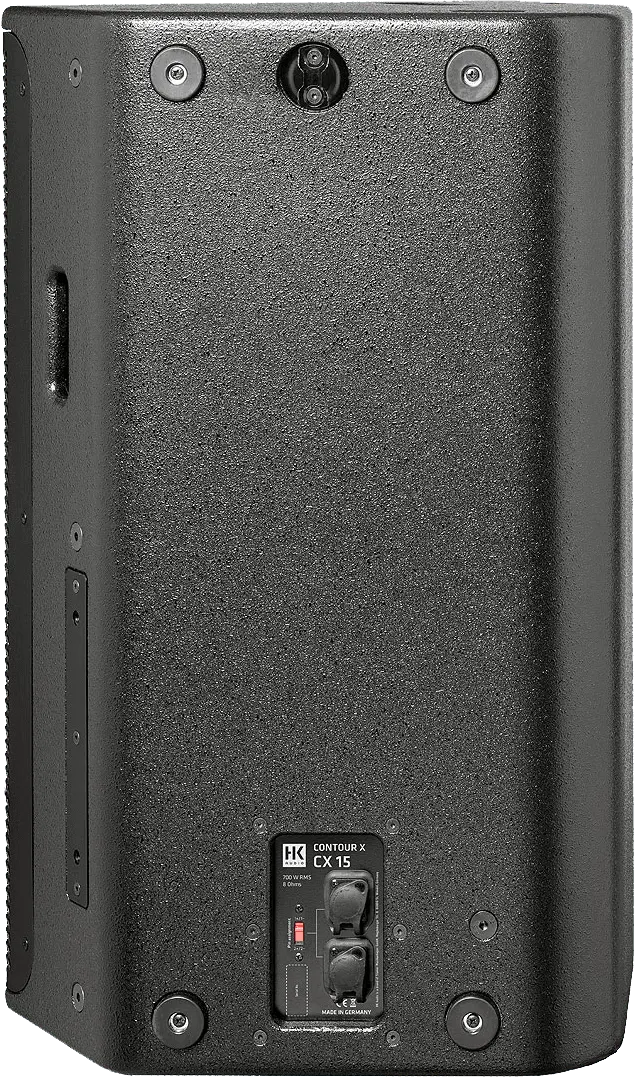

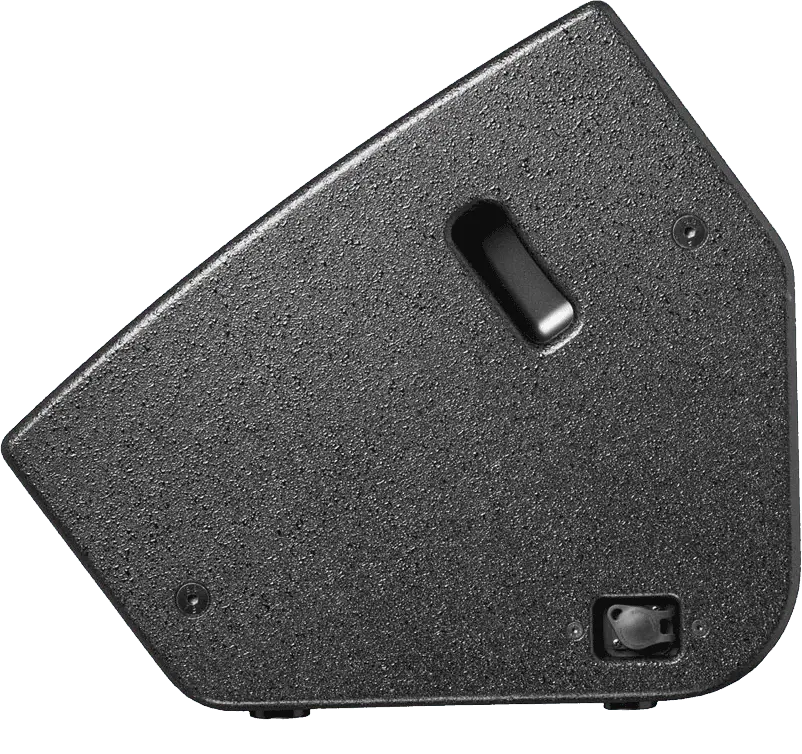

With the benefit of its dual-purpose housing, the CX 15 can serve as both an FOH and a monitor speaker. This unit‘s hallmarks include extremely high maximum SPL, excellent speech intelligibility and enhanced low-end frequency response. The CX 15‘s high-frequency horn was optimized using the BEM (Boundary Element Method). Its phase response is uniform; its dynamic range astonishingly wide. All this adds up to a high-definition audio image with very precise directivity. What‘s more, multiple units are easily clustered. A high-quality PU finish and a front grille with anticorrosive coating provide armor-like protection on the road. The Speakon Pin Assignment switch on the rear panel sets the input signal to 1 +/- or 2 +/-. The CX 15‘s low-profile housing makes it the stage monitor of choice for demanding performers. It comes in left and right versions for symmetrical monitoring arrays. And if you wish set up a powerful two-way active system, we recommend that you deploy this enclosure with HK AUDIO CS 118 or CS 218 subwoofers. It achieves the best audio results when paired with a Lab.Gruppen PLM+ power amp with a LAKE controller as well as with a Powersoft X-Series power amp. Applications: Fullrange sound reinforcement, near-field sound reinforcement with high SPL requirements, e.g. as an FOH top unit, front-fill, side-fill or drum-fill top unit and as a monitor on large stages.
- Application : [MON_monitoring_application001], [MON_monitoring_application002]
- Baseplate width : 35 mm
- Category : Installation and services
- Color : Black
- Connection : [4_NL4]
- Cutaway : Yes
- Dimensions (mm) : 450 x 755 x 395
- Horizontal dispersion in degrees : 75
- Impedance : 8 Ω
- Input sensitivity (1W/1m) : 99 dB
- Insert type : [10M10]
- Number of channels : [MON_monitoring_nbrevoies003]
- Peak power : 2,800 W
- Peak power, type : RMS
- Power / type : RMS
- Power output : 700 W
- Recommended amps : 1,000 W
- SPL max : 132 dB
- Speaker diameter : 15"
- Speaker structure : [MON_struct_enceinte2970]
- Transport : [MON_transport_3_poignees]
- Tweeter : 1,4"
- Type : [enceinte_type_enceinte_passive]
- Vertical dispersion in degrees : 55
- Weight (kg) : 29.10 kg
