L3 112XA

Description

Specification

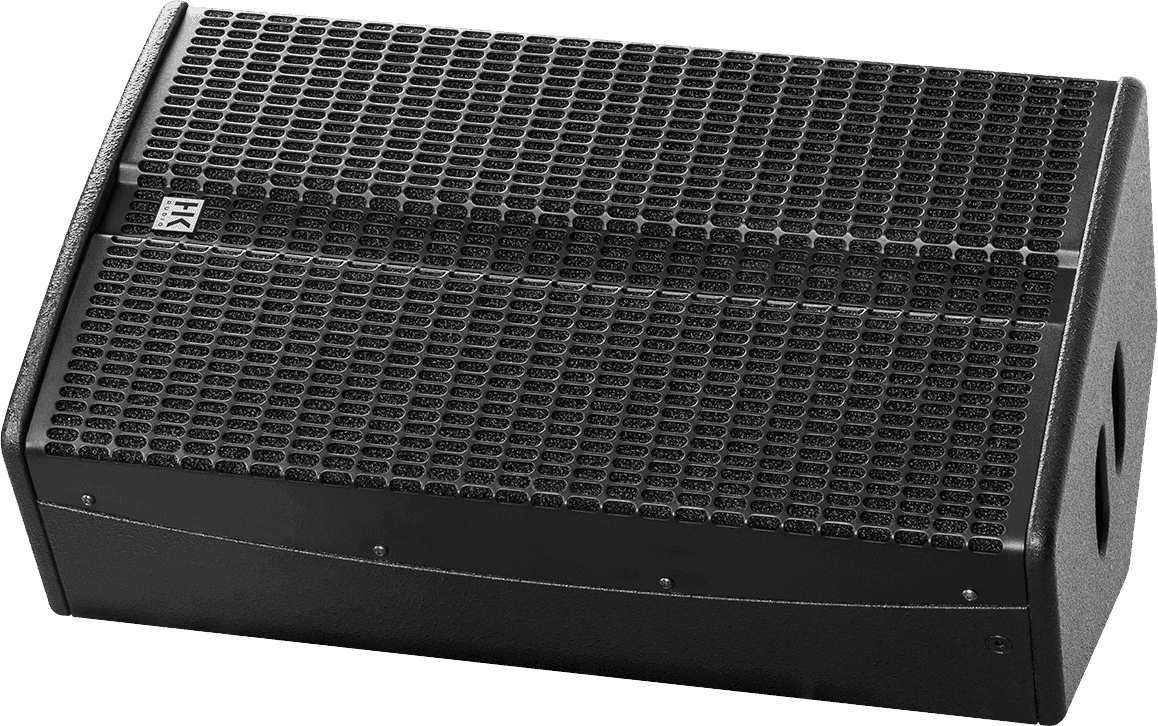

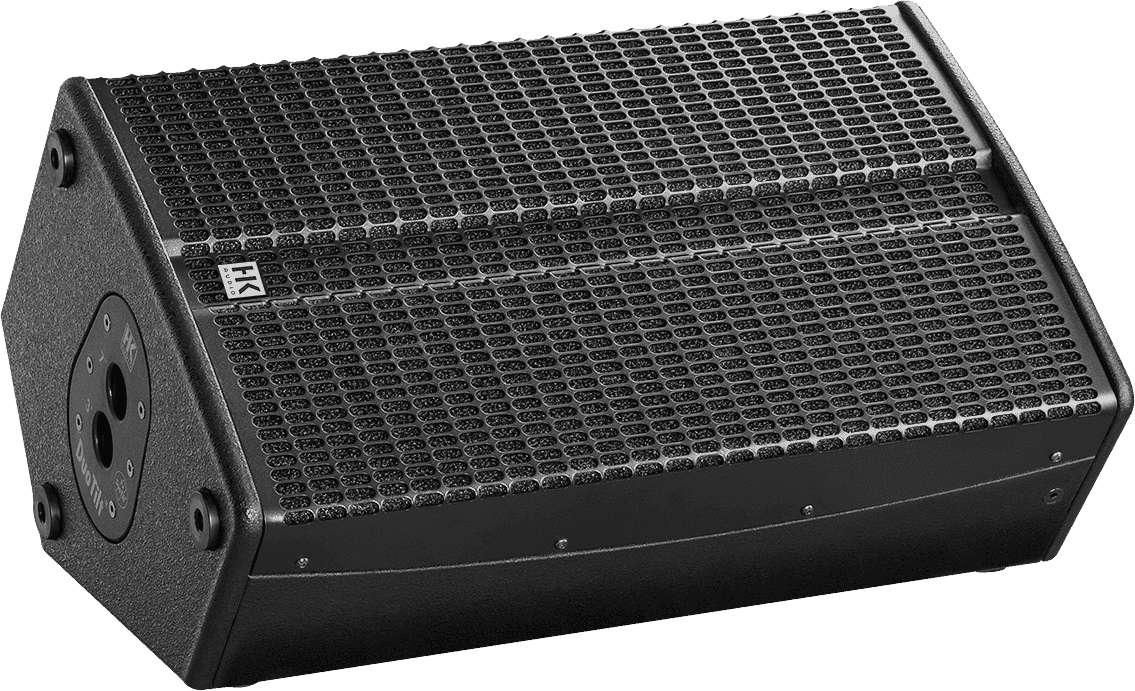

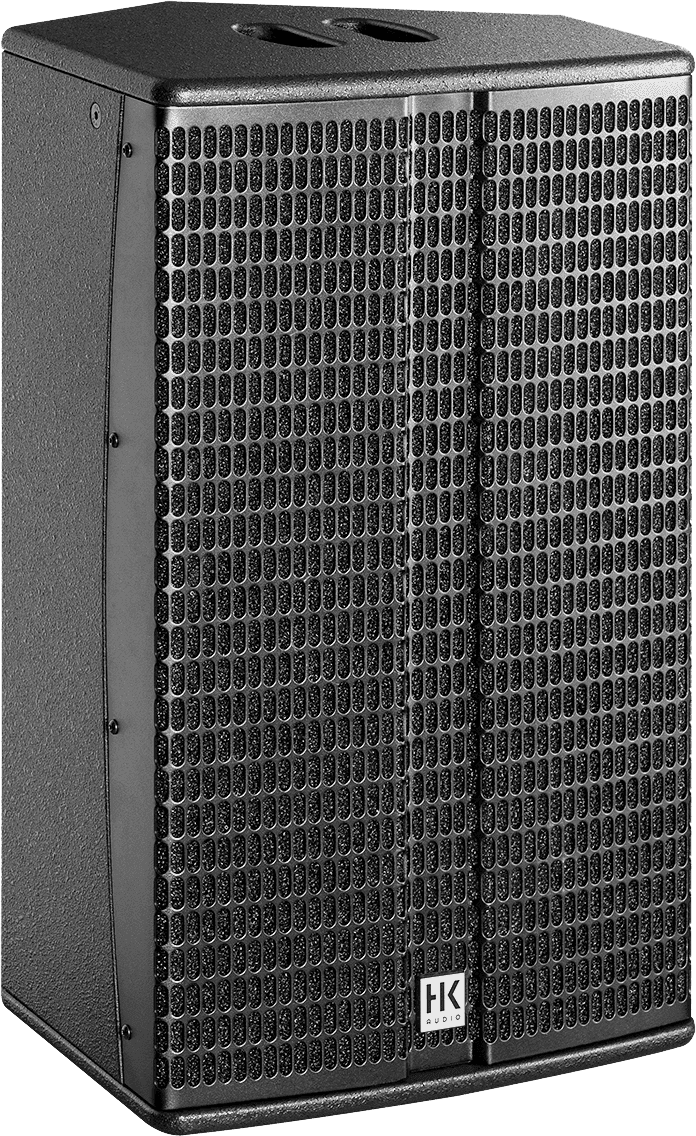

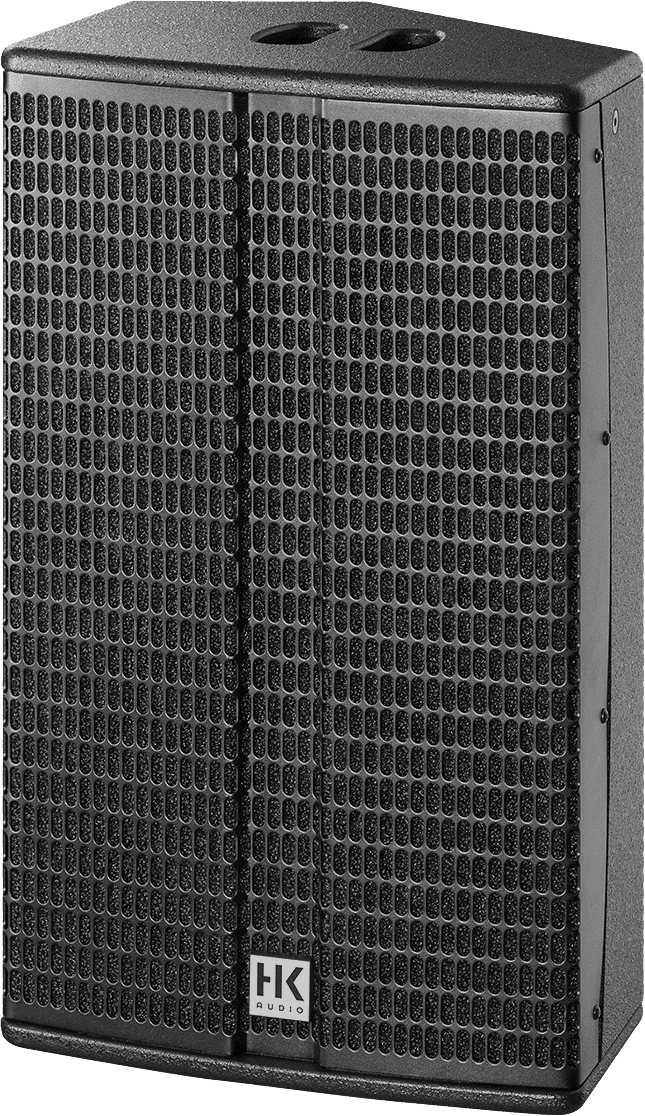

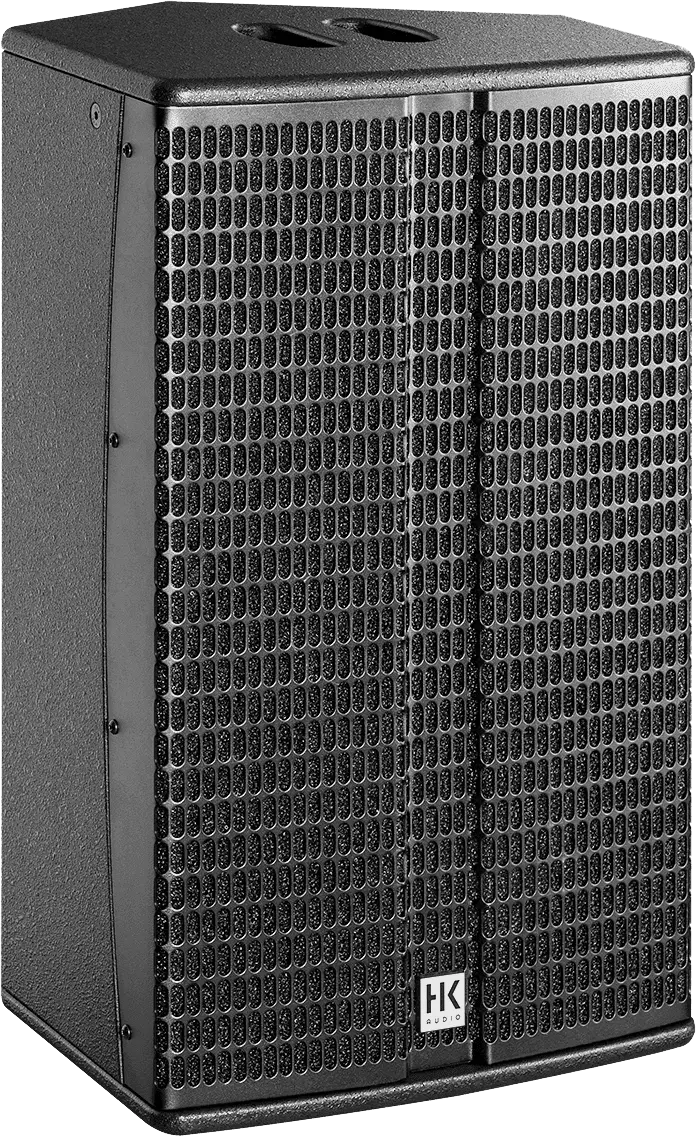

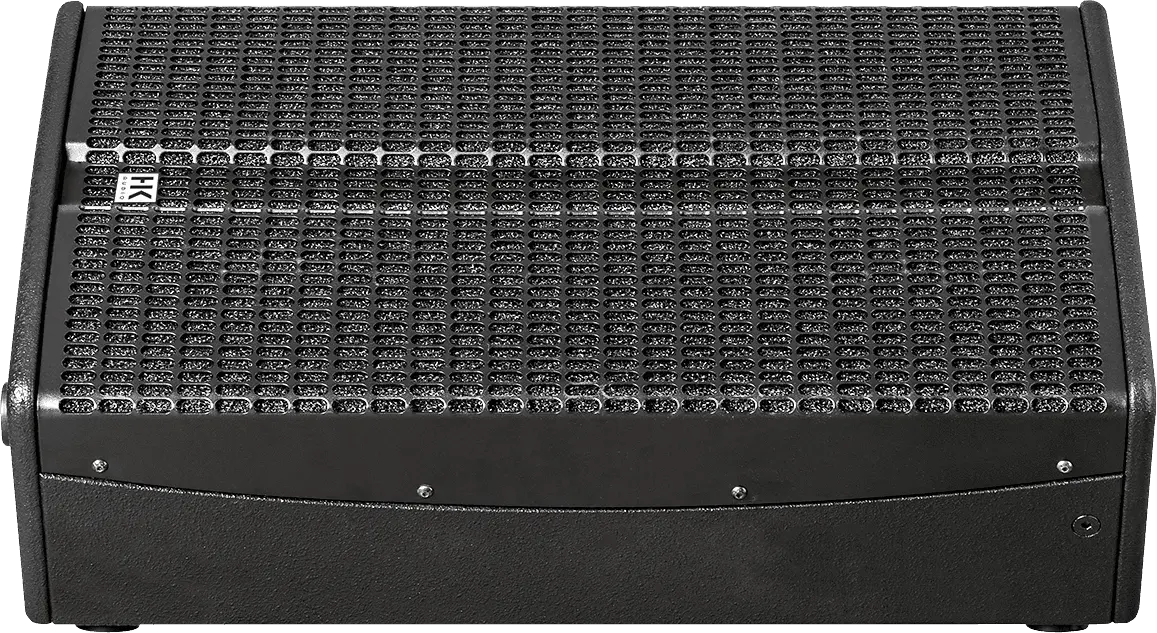

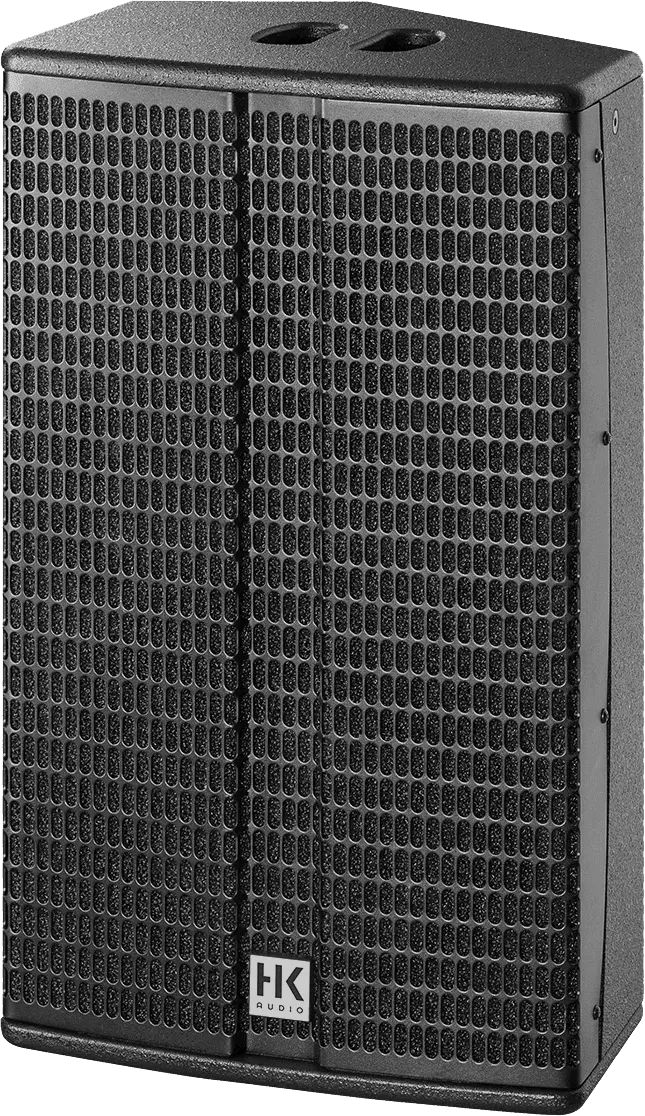

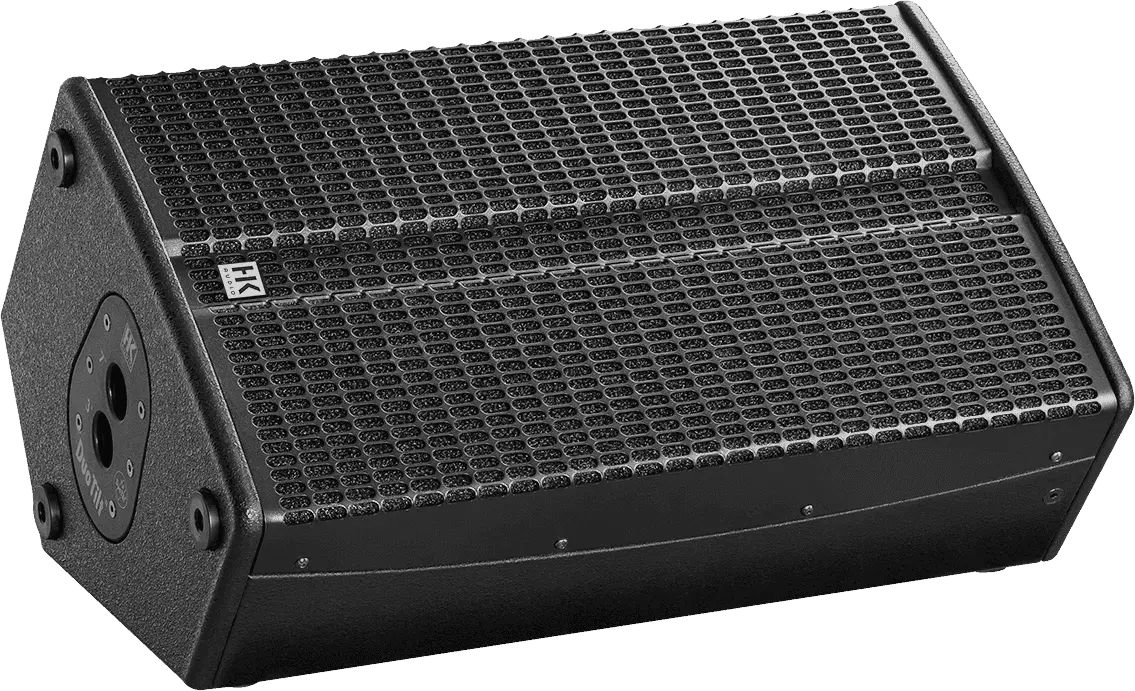

Active 12”/1” cabinet housed in a multipurpose enclosure. The clever design of the LINEAR 3 112 XA allows it to excel as a front PA with plenty of punch, or as an assertive stage monitor.

- Baseplate width : 35 mm

- Category : [enceinte_categorie_sonorisation]

- Color : Black

- Controls : bass boost, [MON_controle_gain_d_entree], auto standby, [enceinte_controles_correction_des_mediums]

- Cut-off frequency : 2,3 kHz

- Cutaway : Yes

- Dimensions (mm) : 395 x 660 x 340

- Dispersion (H x V) : [enceinte_dispersion_90_55_pavillon_roratif]

- Finishing : Black

- Frequency response : 67 Hz - 18 kHz

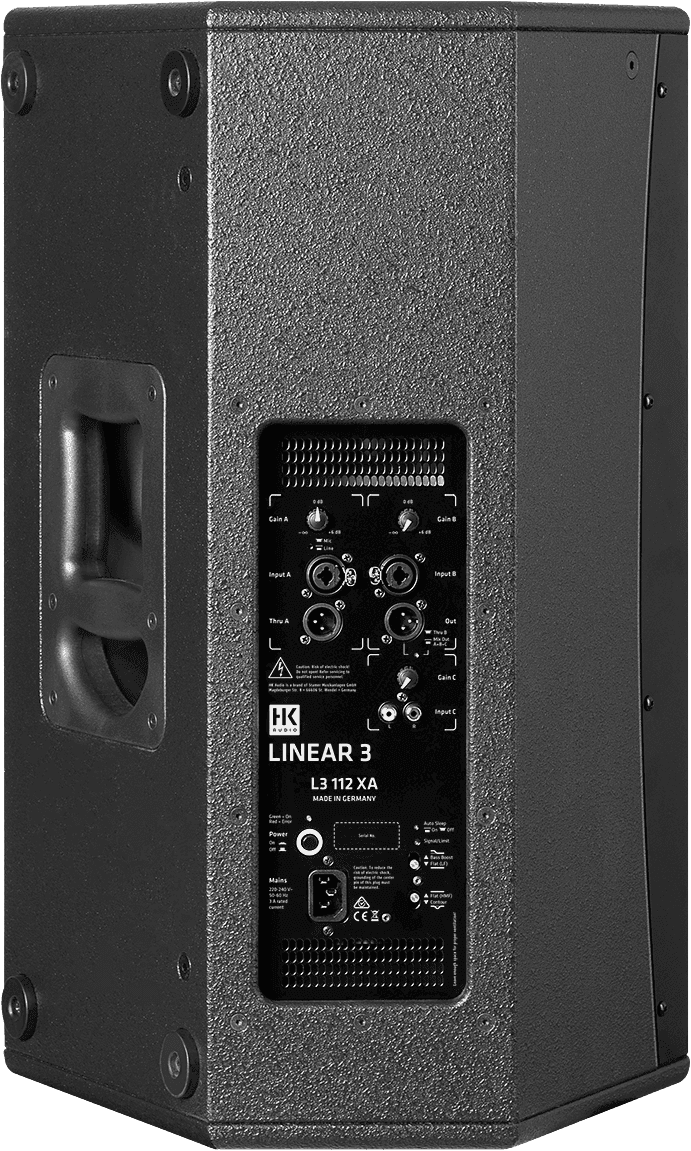

- Inputs : 2 x Rca, 2 x combo XLR/jack

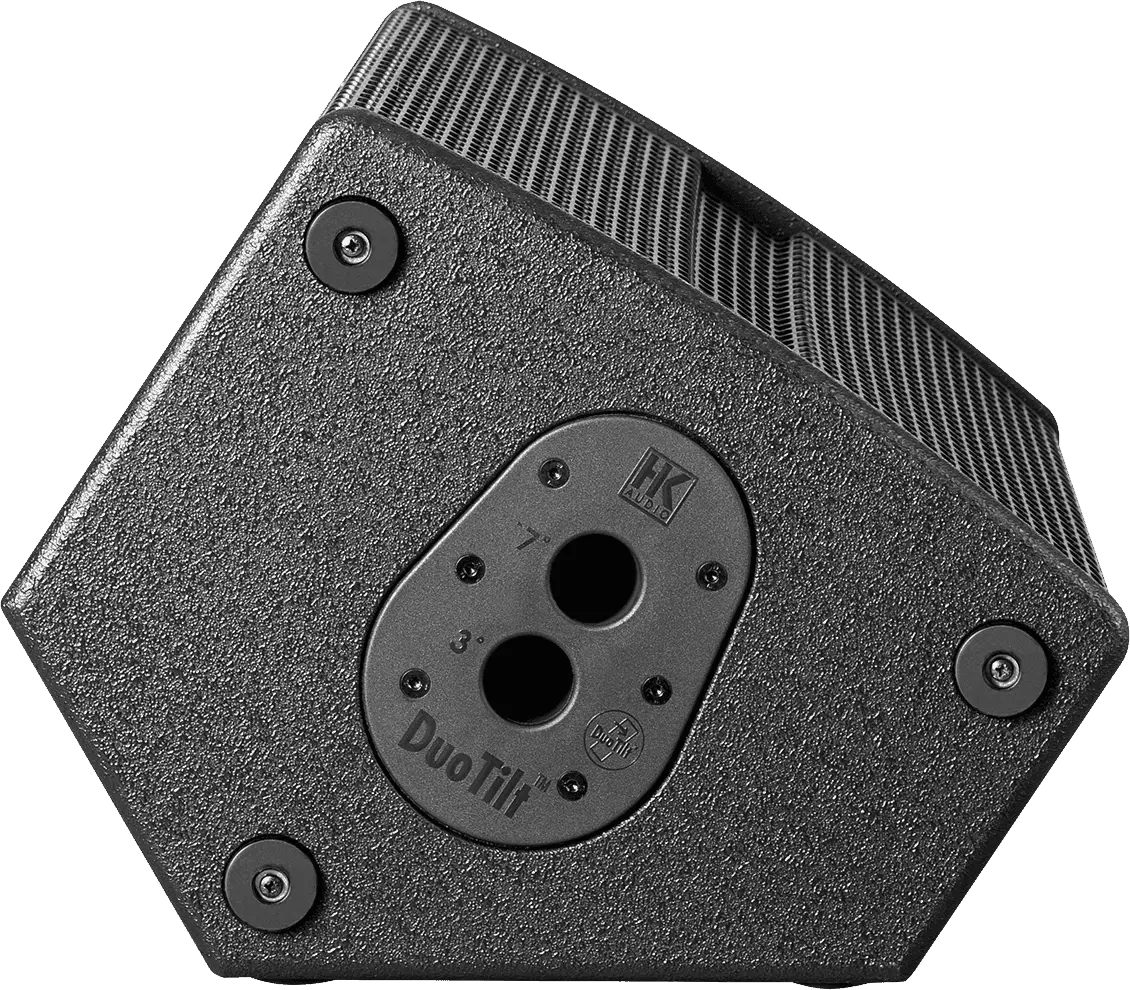

- Mounting : [MON_montage1763]

- Outputs : XLR mix out, link XLR

- Power output : 1,200 W

- Powered : Yes

- SPL max : 135 dB

- Speaker diameter : 12"

- Speaker structure : [MON_struct_enceinte3527]

- Transport : [enceinte_transport_1_poignee]

- Tweeter : 1"

- Type : [enceinte_type_enceinte_active]

- Weight (kg) : 20.60 kg
