SDA AVIO-A-4OUT-EB

Description

Specification

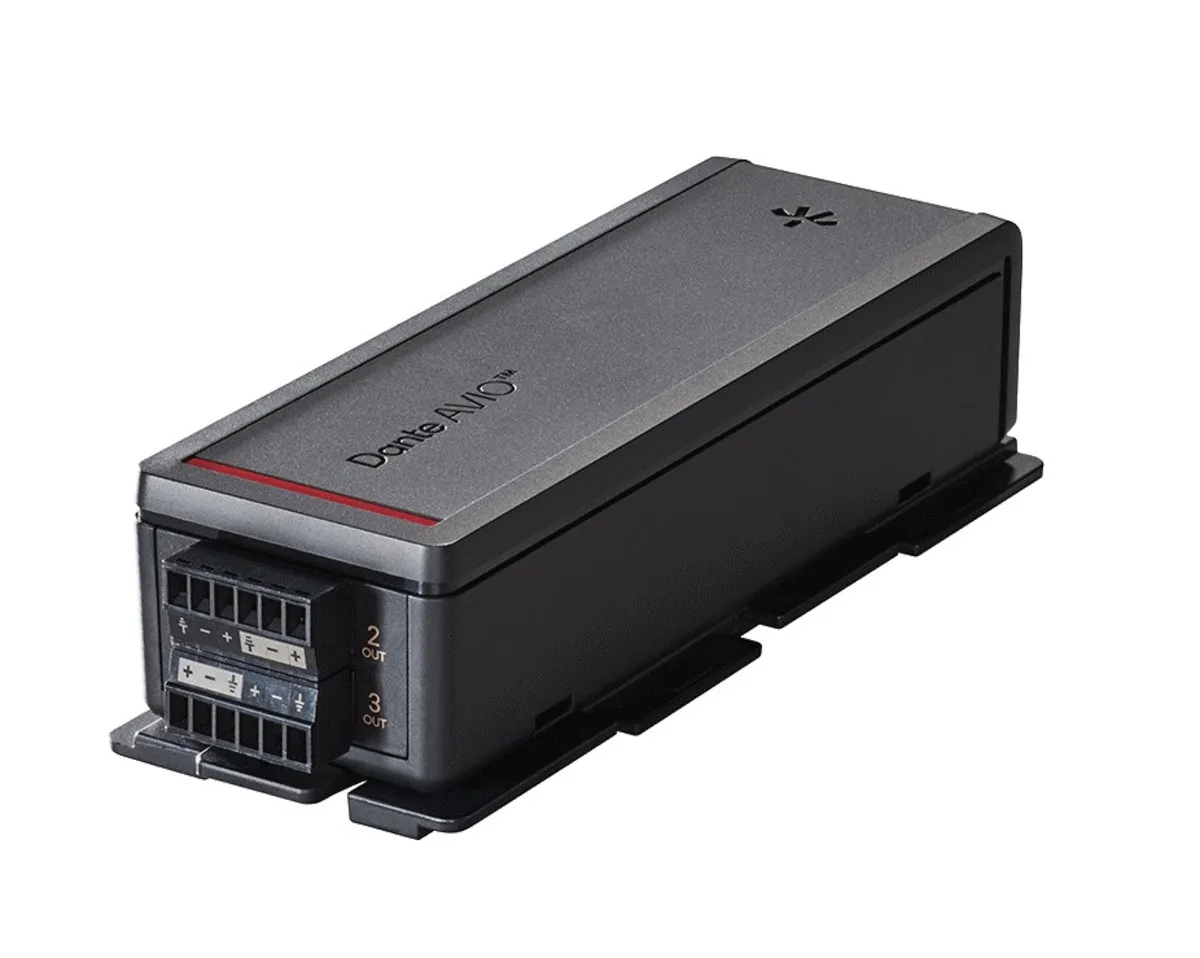

Four-channel Dante AVIO Install output adapter that feeds Dante audio to amplifiers, active speakers and other analog line inputs. PoE powered with Euroblock wiring.

• Dante to 4 analog line outputs (2 channels at 88.2/96 kHz)
• Sample rates 44.1, 48, 88.2 and 96 kHz, 16, 24 or 32-bit
• Selectable max output level: +4 dBu, 0 dBu, 0 dBV or -10 dBV
• Output impedance 300 Ω balanced, 150 Ω unbalanced
• Frequency response 20 Hz – 20 kHz (±0.2 dB)
• Dynamic range 105 dB, THD+N 0.0019 %
• 2 x 6-pin Euroblock, 3.5 mm pitch
• 2 x 100 Mbps Ethernet with built-in switch, daisy-chain up to 4 units per network drop
• PoE Class 3 (802.3af), 2.5 W standalone
• Bracket included, compatible with Dante AVIO ClickGrid
• Setup and routing in Dante Controller
