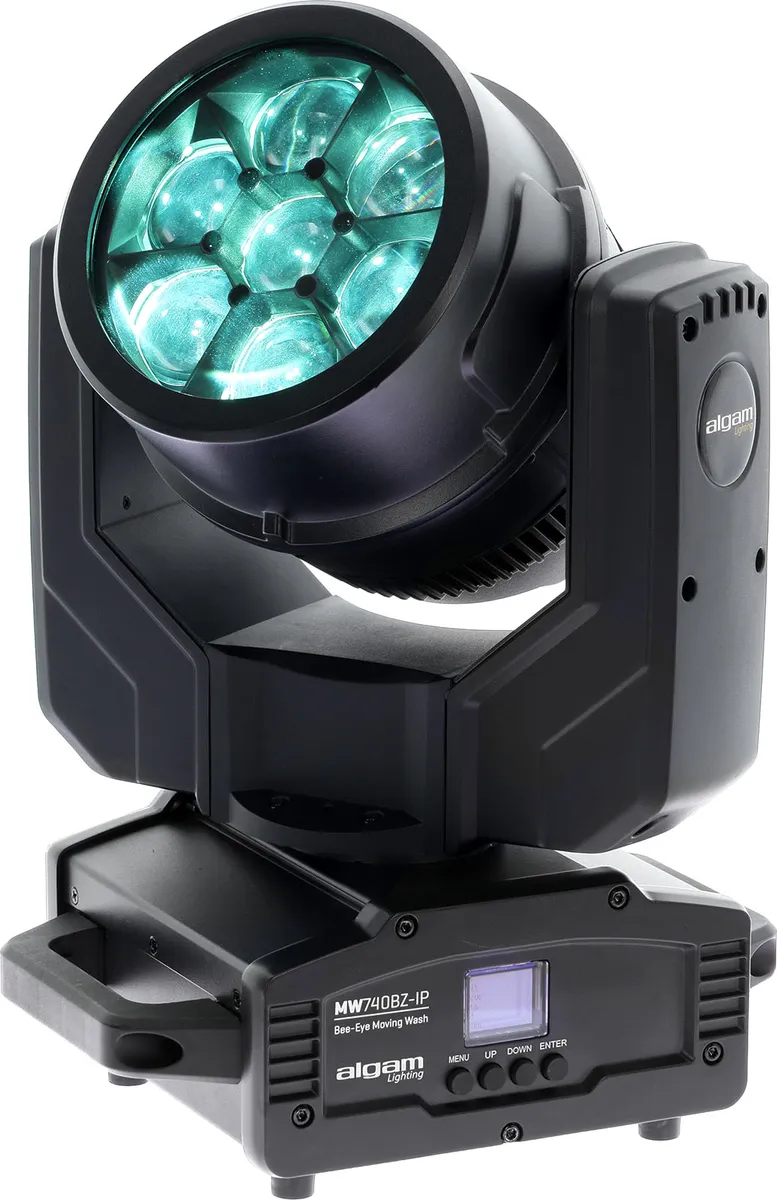

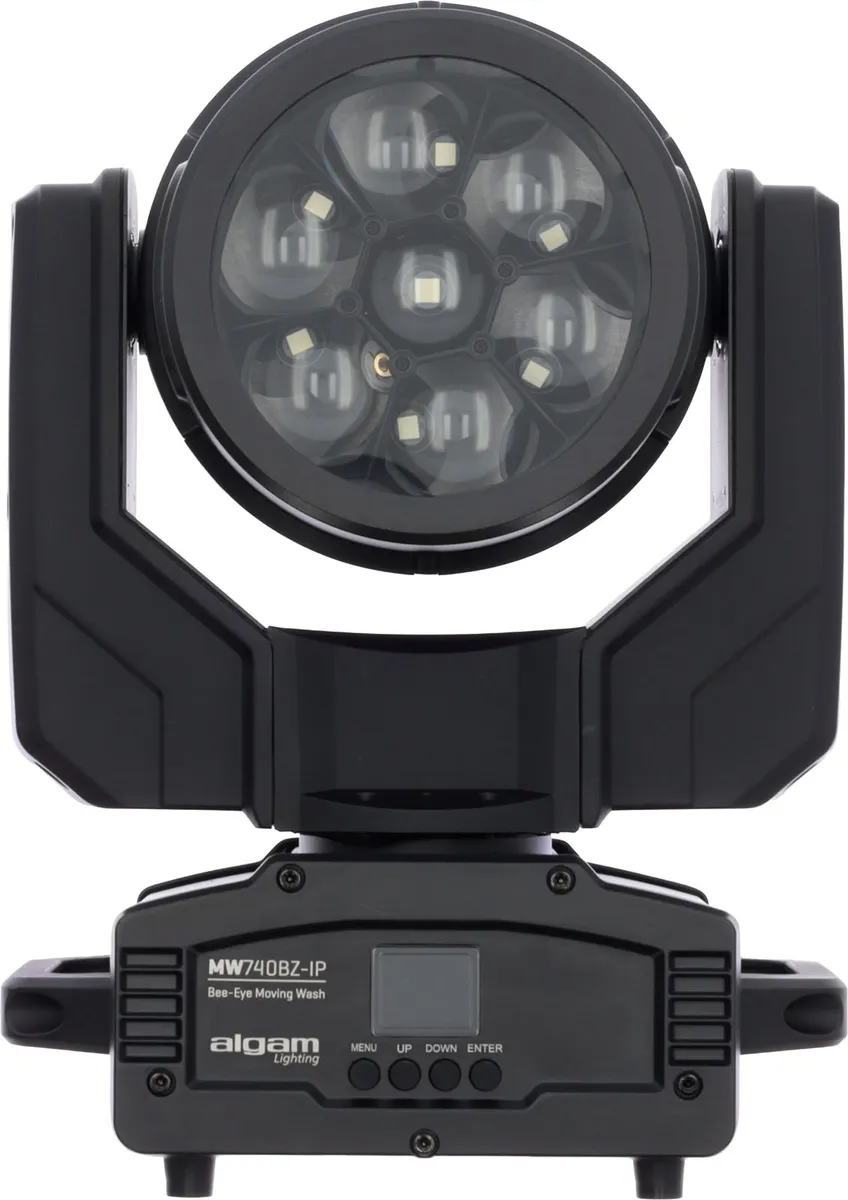

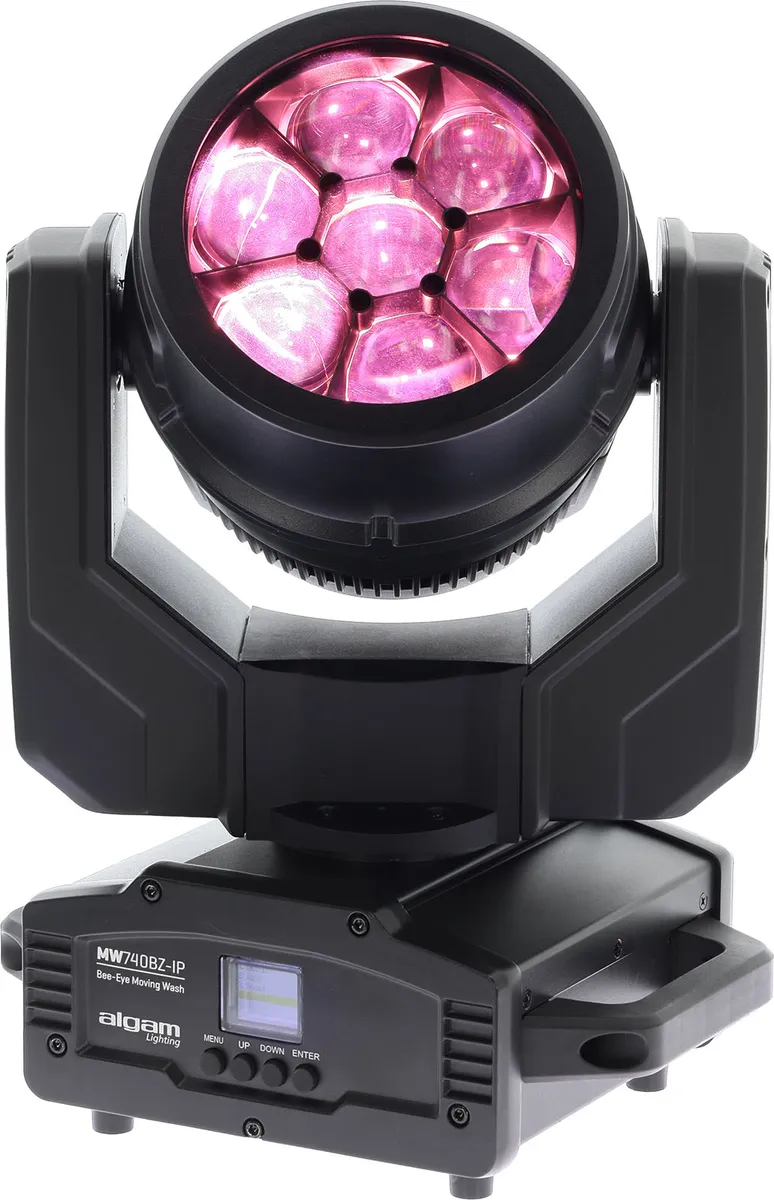

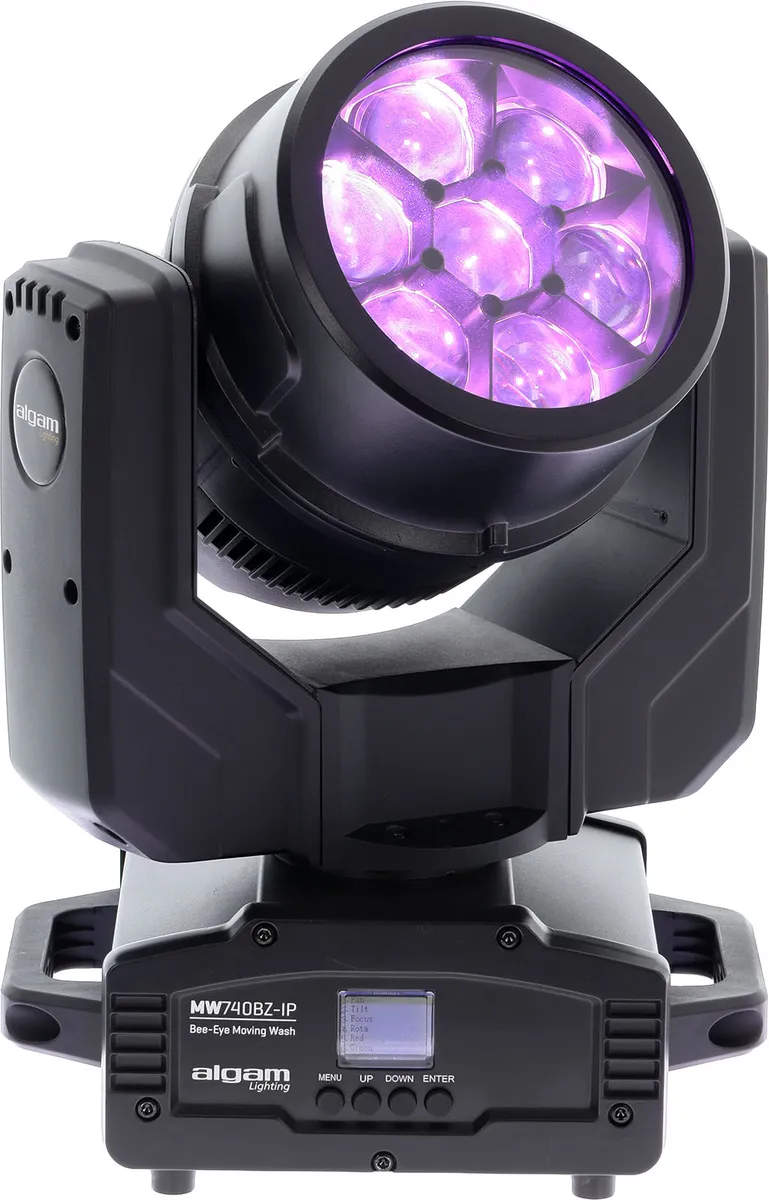

The MW740BZ-IP from Algam Lighting is a high-performance RGBW LED wash moving head, designed to meet the demands of stage productions, event applications and outdoor installations. Equipped with 7 × 40 W RGBW LEDs, a motorized zoom ranging from 6° to 45°, delivering anything from a tight spot-like beam to a wide wash, an impressive rotating Bee-Eye effect, and an IP65 rating, it provides powerful, precise and creative lighting in all installation conditions. Versatile and expressive, the MW740BZ-IP is a reliable choice for rental companies, touring productions and fixed installations.
A powerful and versatile wash for your productions
Thanks to its 7 high-power RGBW LED sources, the MW740BZ-IP delivers an intense, uniform light output, equally capable of producing a narrow beam or covering large stages and spaces. Its motorized 6° to 45° zoom allows instant transitions from a focused beam to a wide, enveloping wash, making it ideal for rapid mood changes during concerts, festivals or corporate events. The RGBW color mixing ensures rich colors, from highly saturated looks to subtle, refined tones in any stage environment.
Dynamic effects to enhance your shows
The MW740BZ-IP features a rotating Bee-Eye effect, adding movement and depth to the beam. In rotation, each LED becomes an individual visual element, creating circular effects, light spirals and impactful motion patterns. This effect is especially valued for energizing a stage, creating strong transitions or adding depth without relying on complex external effects. Each LED can be individually controlled (pixel control), enabling complex animations, circular chases and precise graphic effects. Built-in macros allow fast creation of dynamic effects, while the strobe effect and linear 0–100% dimming ensure clean, controlled transitions.
In 32- and 60-channel DMX modes, the MW740BZ-IP allows you to maintain an independent background color while animating the main beam, a major advantage for enriching scenography without compromising overall visual consistency.
Designed for demanding environments
With its IP65 certification, the MW740BZ-IP is perfectly suited for outdoor use, even in challenging conditions involving rain or dust, without sacrificing performance. It is equally at home on open-air stages, festivals and temporary events, as well as in fixed installations exposed to the elements. Its fast and precise PAN/TILT movement (540° / 270°), combined with high-resolution control, ensures smooth, silent motion ideally suited to professional lighting shows.
Professional control and seamless integration

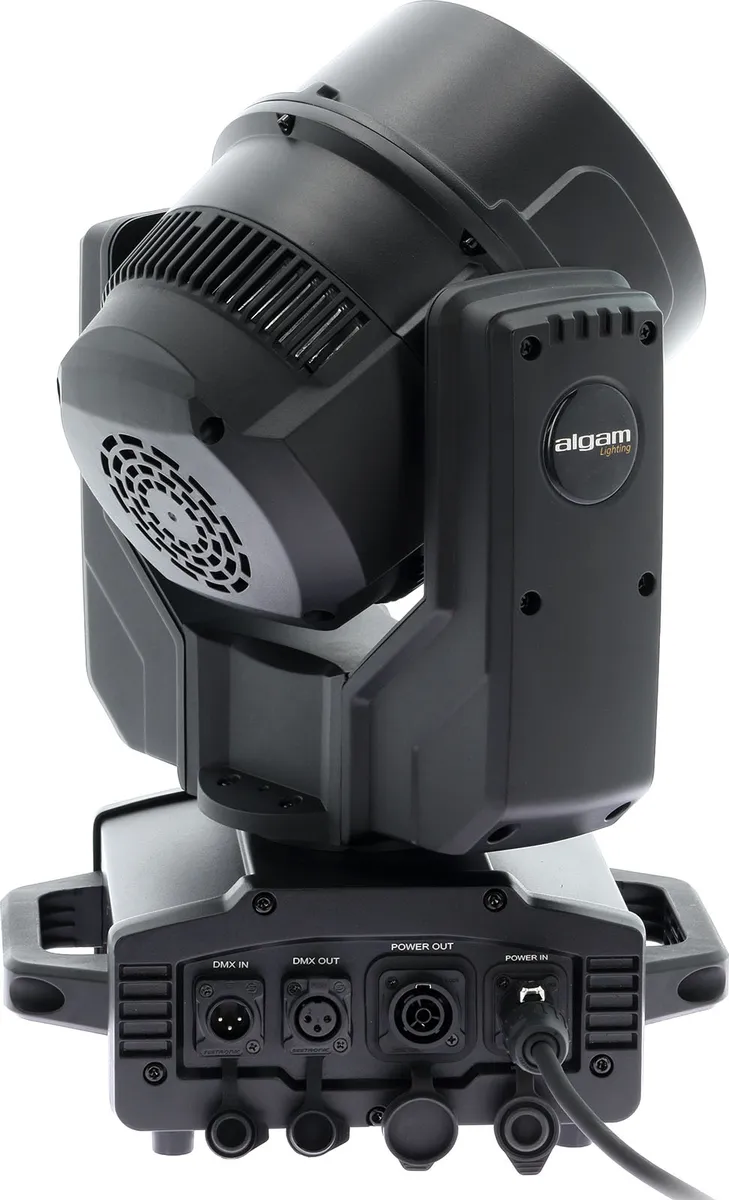

The MW740BZ-IP integrates easily into all types of setups, from simple configurations to advanced lighting shows. It features 3-pin DMX input and output for quick fixture chaining, as well as professional PowerCon True1 power connectivity designed for stage and event use. It can also operate in automatic, master/slave or sound-activated modes, offering great flexibility in operation.

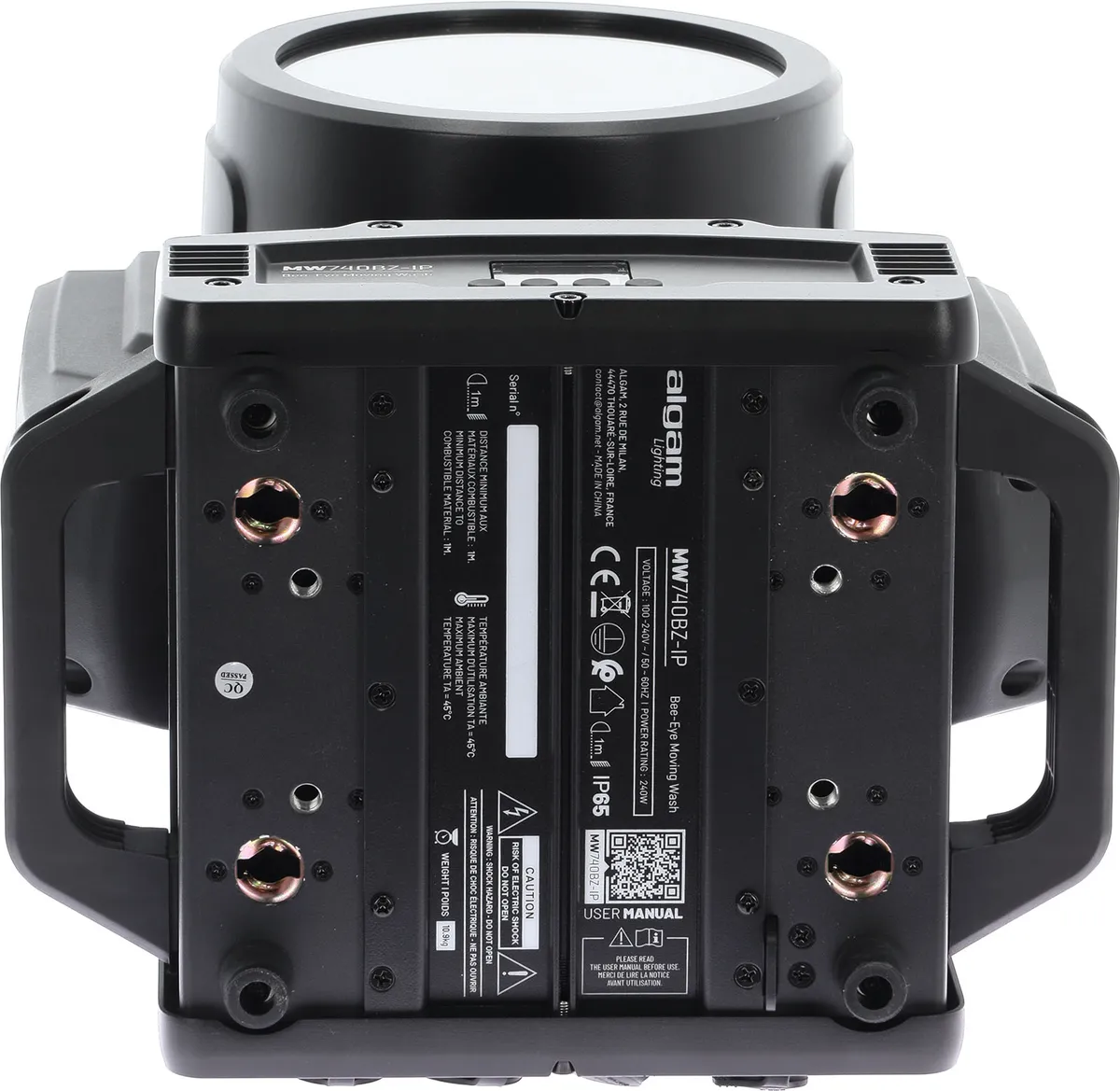

Designed for professional rigging, the MW740BZ-IP features a robust housing and a professional mounting system with supplied OMEGA brackets, ensuring reliable and durable integration indoors and outdoors.
- Light sources: 7 × 40 W RGBW LEDs
- Effects: rotating Bee-Eye effect, pixel control (individual control of each LED), animation and color macros, strobe
- Dimmer: 0–100%, linear dimming
- Beam angle: motorized zoom from 6° to 45°
- Movement: PAN 540° / TILT 270° (8/16-bit resolution)
- Operating modes: Auto, Sound, Master/Slave, DMX,
- RMD support
- DMX channels: 16, 24, 32 or 60
- Advanced features: independent background color in 32- and 60-channel modes
- Display: 1.8" color LCD display with navigation buttons
- Housing: aluminum, weatherproof design
- Mounting: base plate, OMEGA brackets included
- DMX input/output: 3-pin XLR
- Power input/output: PowerCon True1
- Power supply: 100–240 V ~ 50/60 Hz
- Power consumption: approx. 240 W
-Ingress protection: IP65 (indoor and outdoor use)
- Weight & dimensions: 10.9 kg, 220 × 310 × 462 mm
- Supplied with: PowerCon True1 power cable, OMEGA brackets, safety cable
