L5 112X

Description

Specification

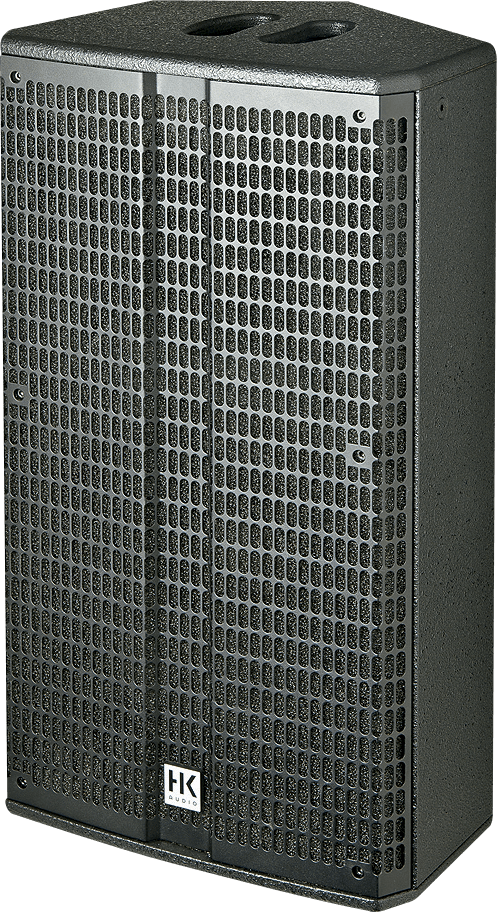

This 12″/1″ model is housed in a multipurpose enclosure tuned to deliver the highest sound pressure levels (135 dB SPL peak). A switchable filter configures it for use as a top unit (adding long range capability) in systems with the Linear SUB 2000. The L5 112 X also makes an excellent monitor with a plenty of gain before feedback. Its rotatable 60° x 40° CD horn provides the right coverage pattern for each scenario.

- Baseplate width : 35 mm

- Category : Soundsystem

- Color : Black

- Cut-off frequency : 1,7 kHz

- Cutaway : Yes

- Dimensions (mm) : 370 x 670 x 300

- Finishing : Black

- Frequency response : 100 Hz - 18 kHz

- Horizontal dispersion in degrees : 60

- Impedance : 8 Ω

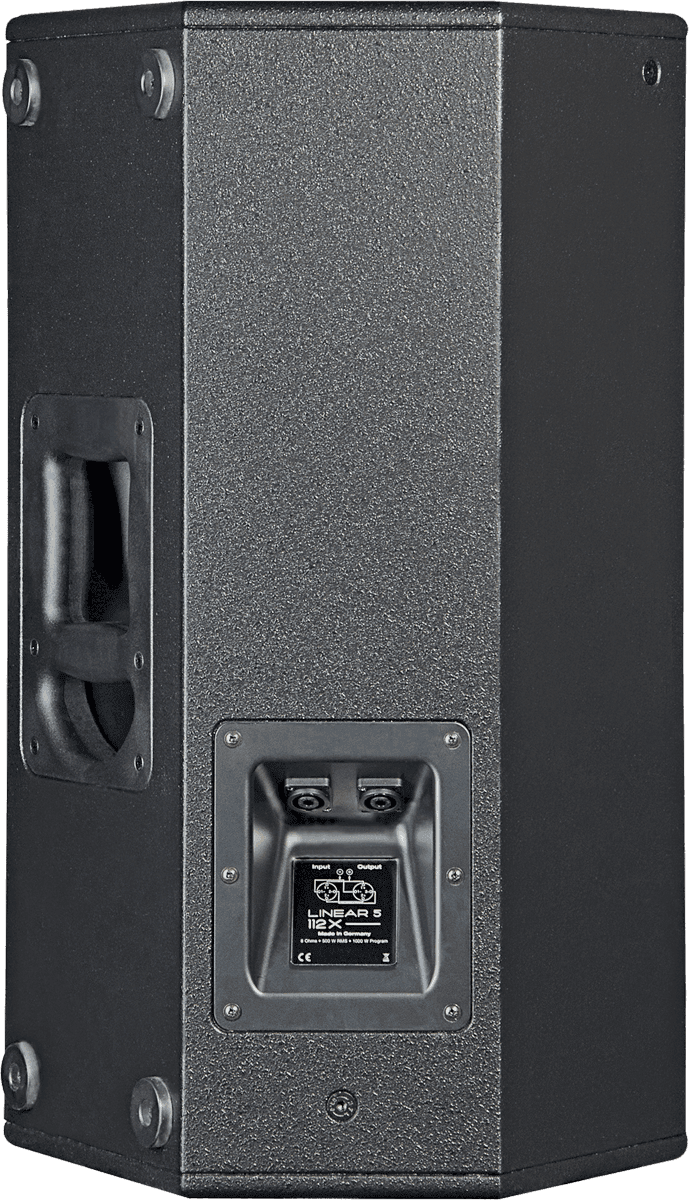

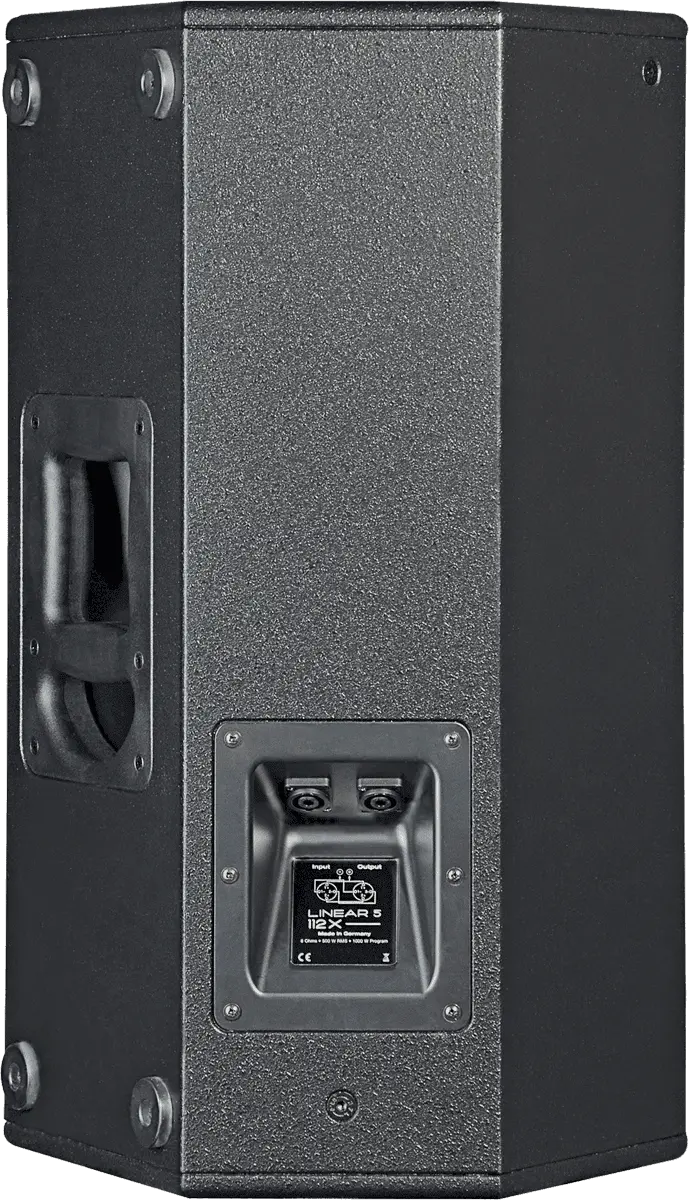

- Inputs : Speakon

- Mounting : On stand or aerial

- Outputs : Speakon

- Peak power : 2,000 W

- Power output : 500 W

- SPL max : 135 dB

- Sensitivity : 105

- Speaker diameter : 12"

- Speaker structure : multi-ply birch - MDF

- Transport : 2 handles

- Tweeter : 1"

- Type : passive speaker

- Vertical dispersion in degrees : 40

- Weight (kg) : 19.50 kg
