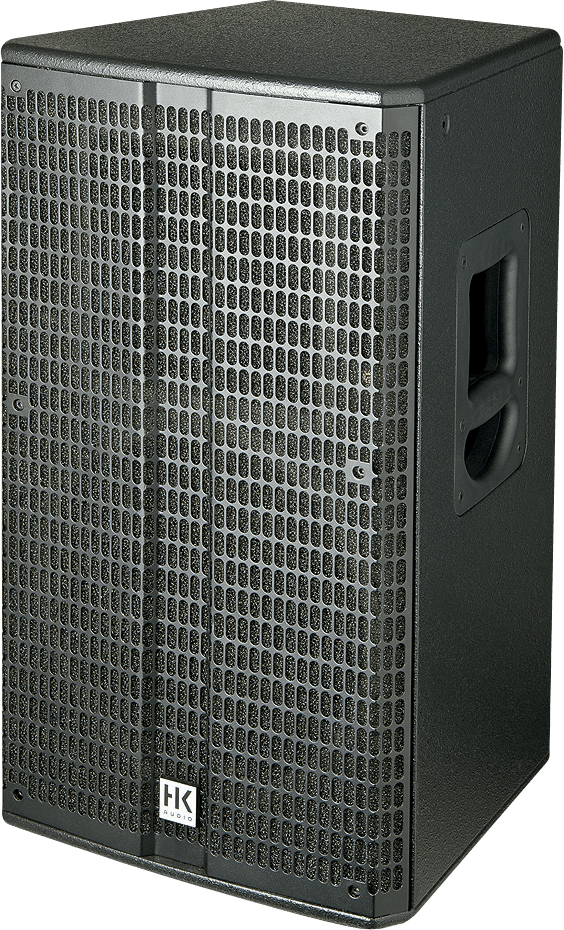

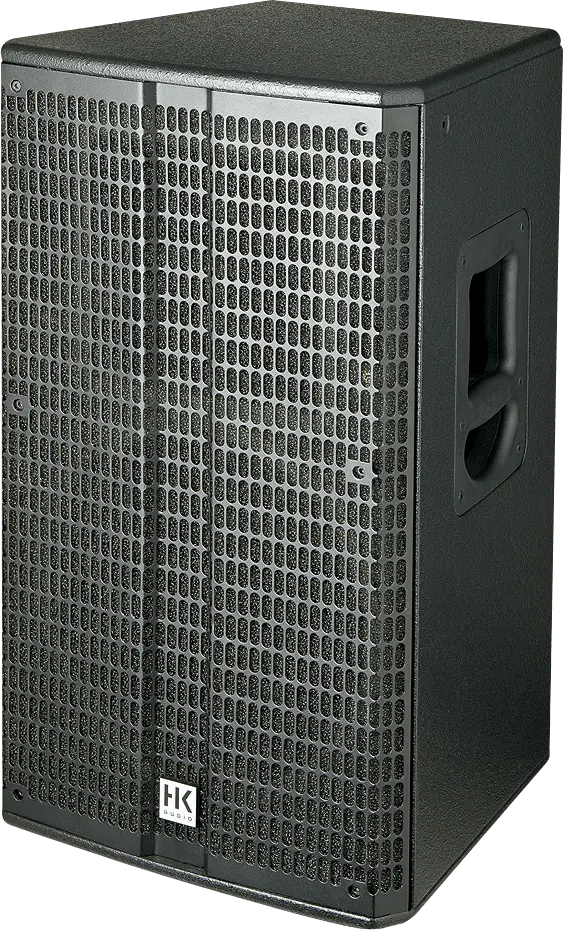

This 12″/1″ fullrange mid/ high unit delivers the most powerful bass performance in its class and features an asymmetrical horn (60º – 90º x 55º) with an optimized coverage pattern. It also comes with a switchable EQ enabling the cab to be deployed as a standalone fullrange unit and in stereo pairs, as well as a mid/ high unit when combined with a Linear subwoofer.
• Bandwidth +/• 3dB : 70 Hz • 18 kHz
• Sensitivity : 104 dB (half space)
• SPL max @ 10% THD (half space) : 128 dB (134 dB Peak)

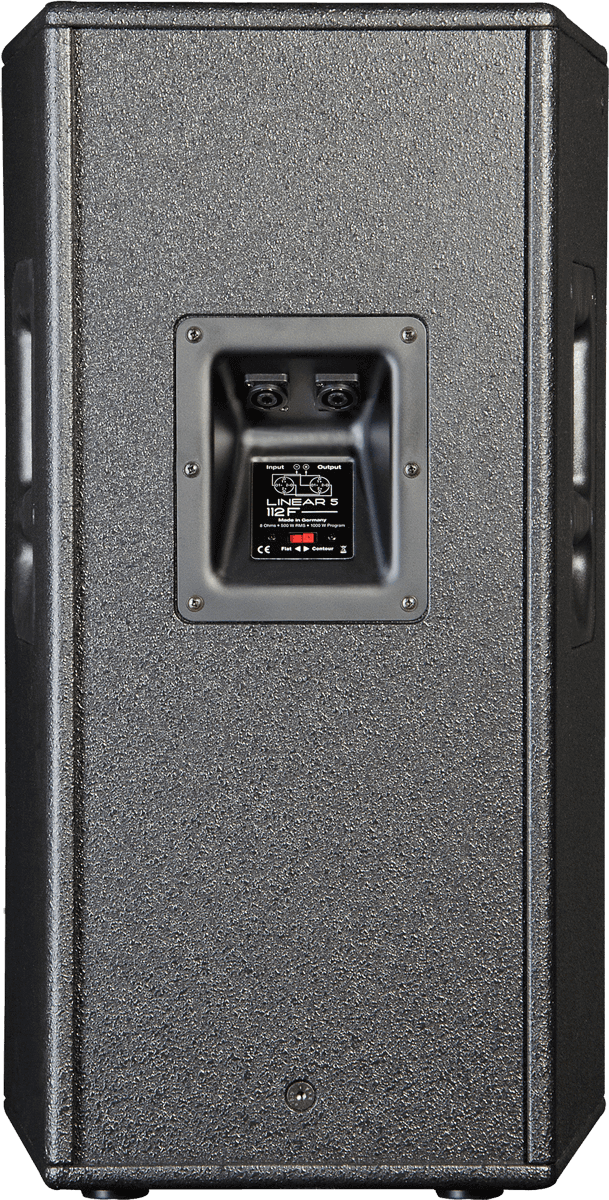

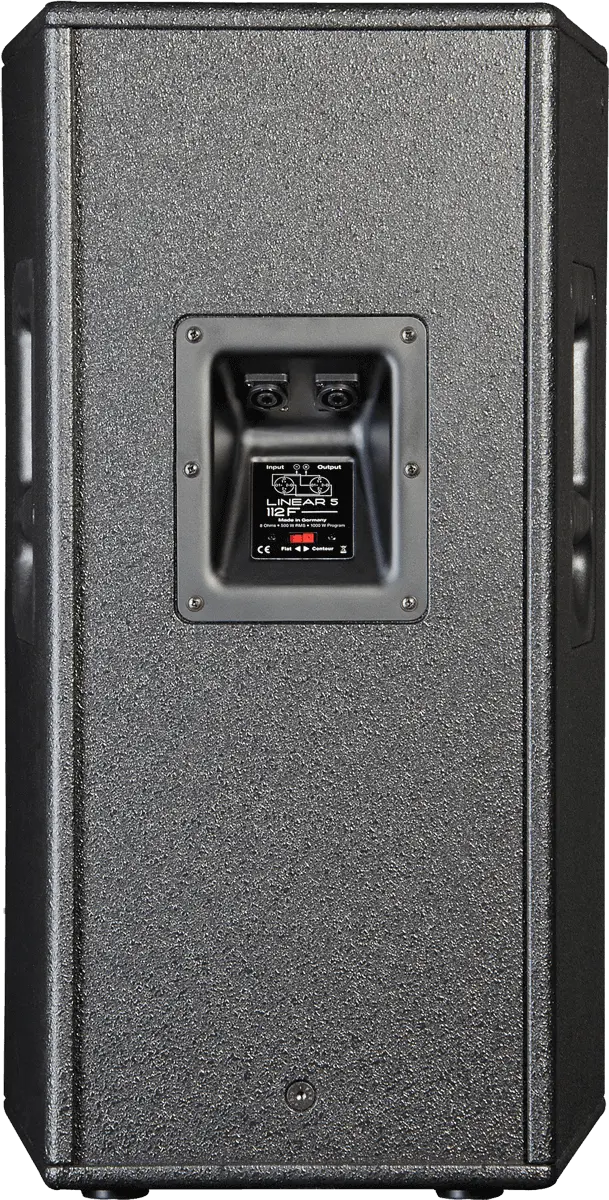

• Connectors : 2 Speakon NL4
• Components : HP 31 cm / 1"" treble motor
• Dispersion (H x V) : 60-90° (asymmetrical) x 55°, pivotable
• Sloped base for speaker stand: DuoTilt 36 mm, 3 or 7 degrees
• Hook : 3 M8 inserts for optional rings (reference EB8)
• Dimensions: W37 x H67 x D36.5 cm / Weight: 23.3 kg / Colour: black
• Hybrid structure: birch plywood and MDF
